5 Gallon Water Project

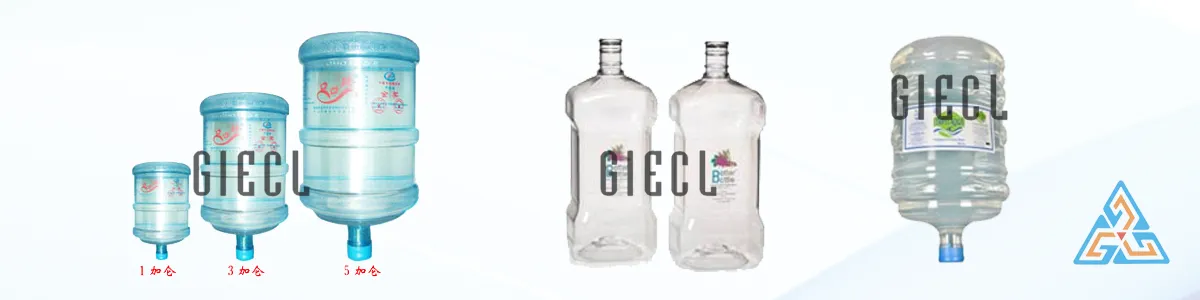

20 Liters Bottle

5 Gallon Water Project
5 Gallon Water Project

3/5 Gallon 120 - 600 BPH Rinser Filler Capper 3-in-1 Filling Machine


Equipment Introduction


5 Gallon Water Project

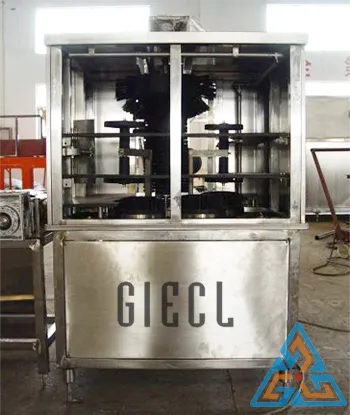

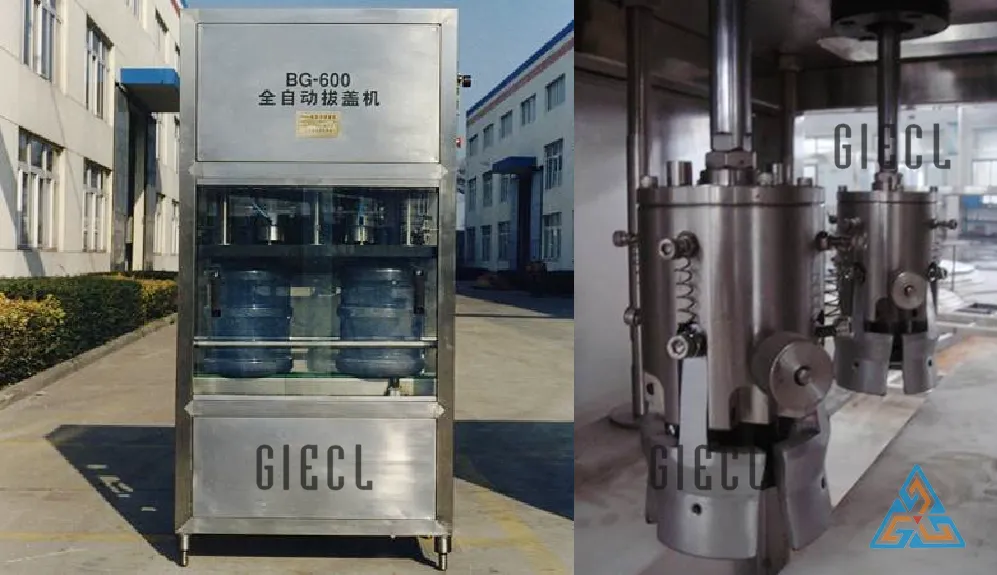

Automatic Cap Puller

BG Series is specially designed for the 5 gallon barrel .There is little damage to the cap and the cap can be recycled .It is controlled by the PLC and the capacity can be adjusted. The cap pulling structure is controlled pneumatically, which overcome tolerance between the barrel height and barrel mouth and improves the production rate.

Main technical parameters

Description Appication
Pulling head 2
Barrel size F276x490
Capacity 600B/H
Air pressure 0.6-0.8MP
Air consumption 200l/m
Dimension 500�-500�-1650mm
Weight 80kg
5 Gallon Water Project

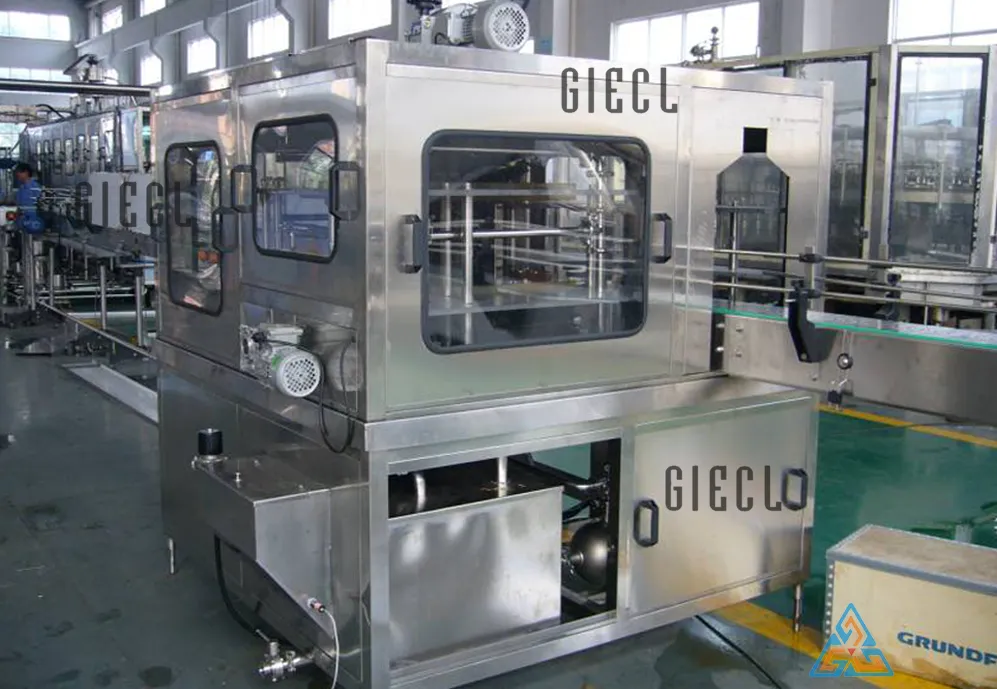

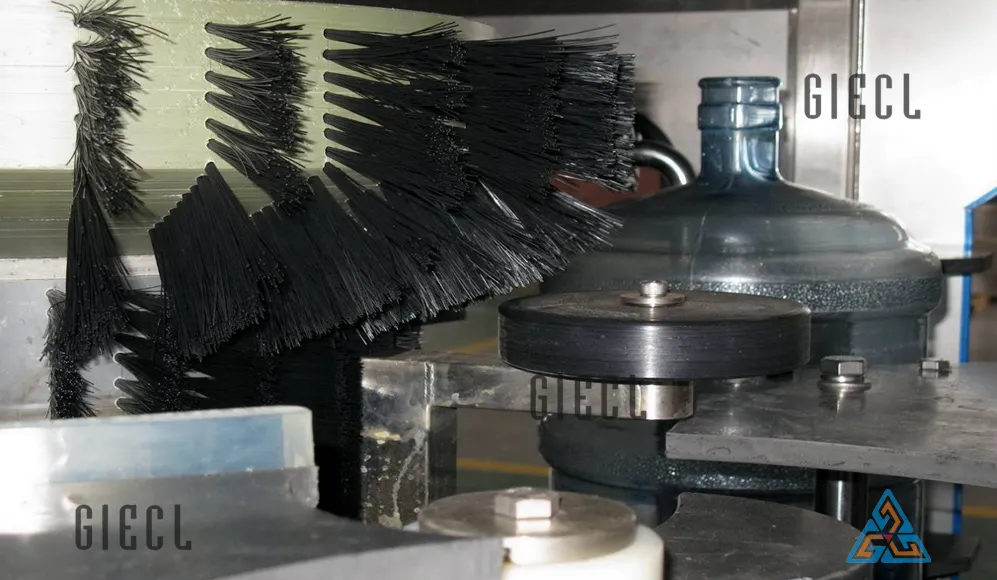

Automatic External Brusher

5 Gallon Water Project

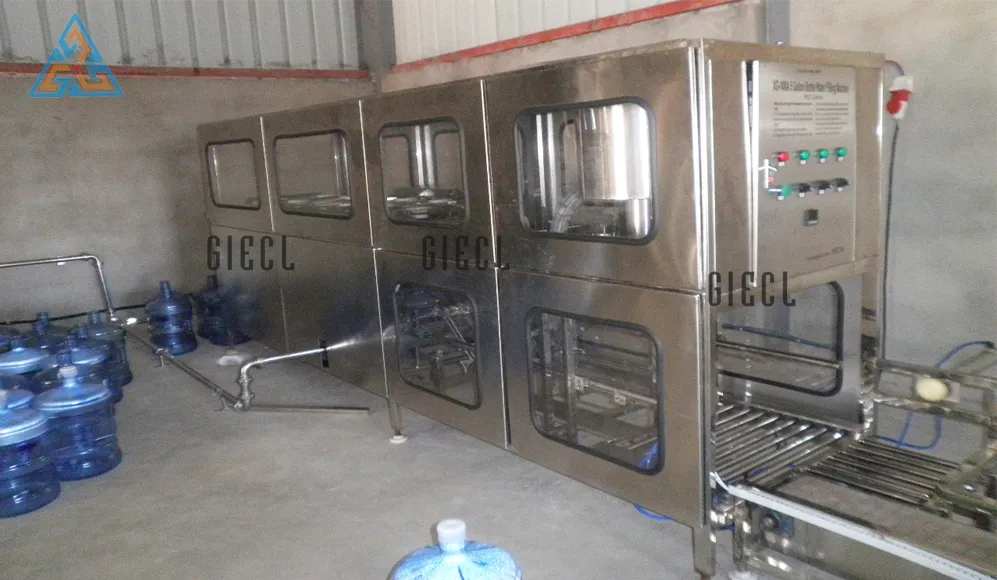

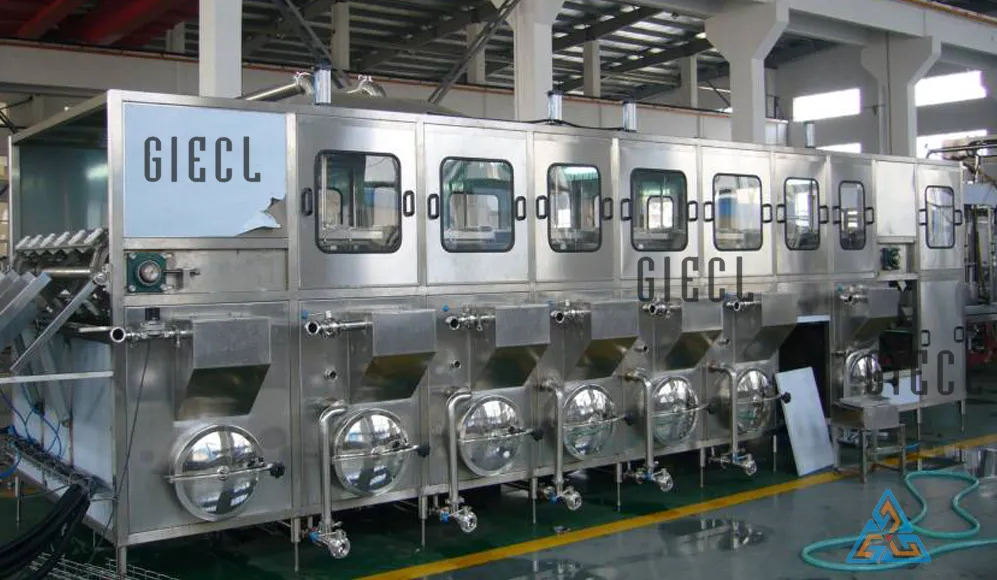

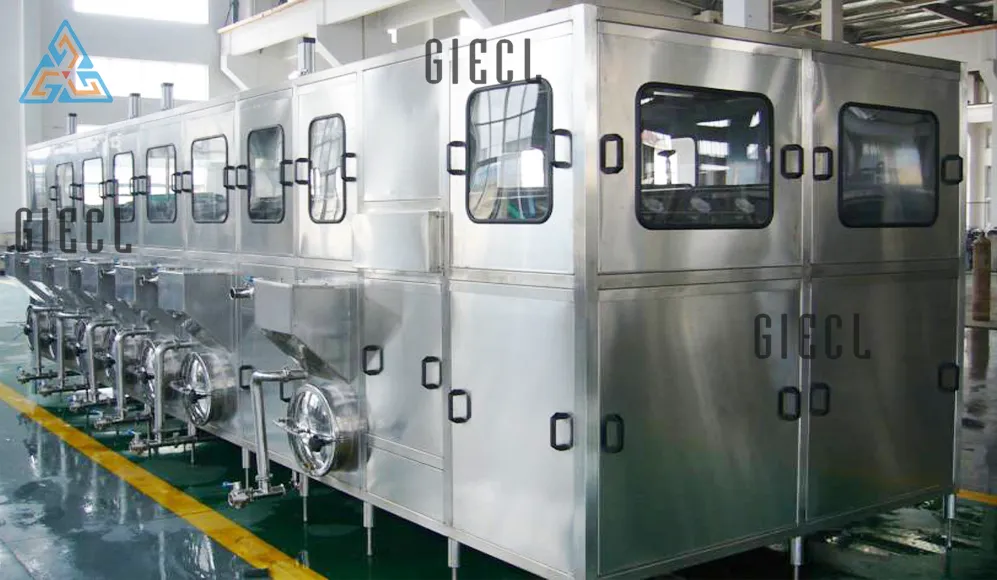

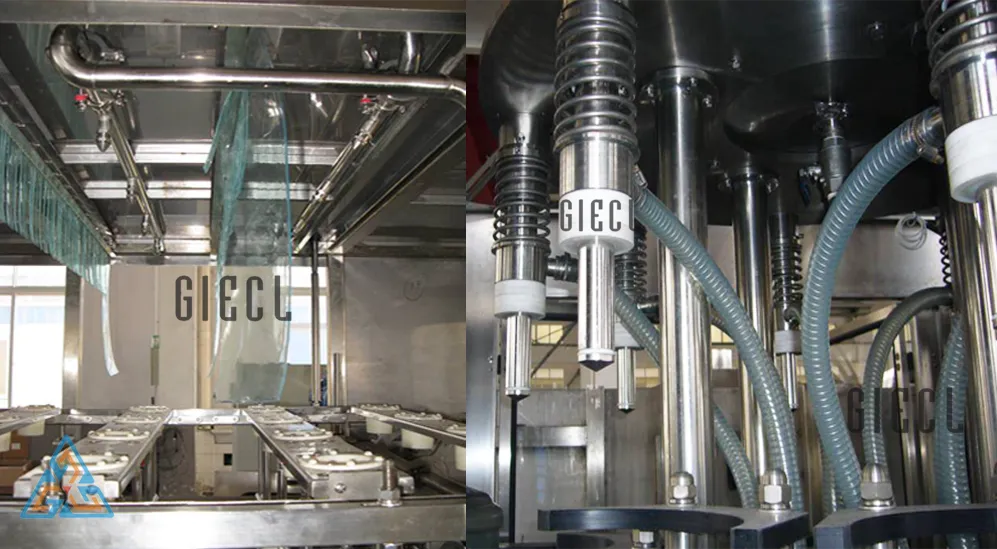

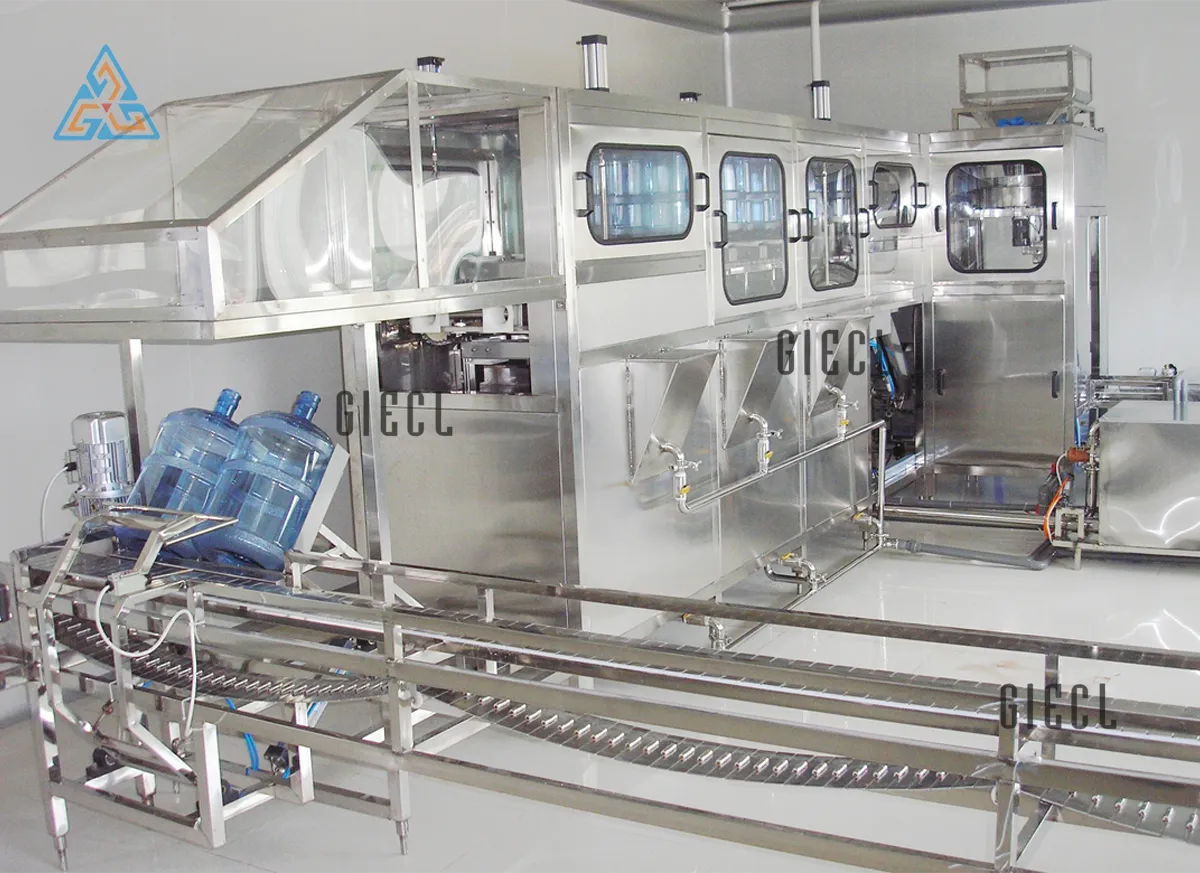

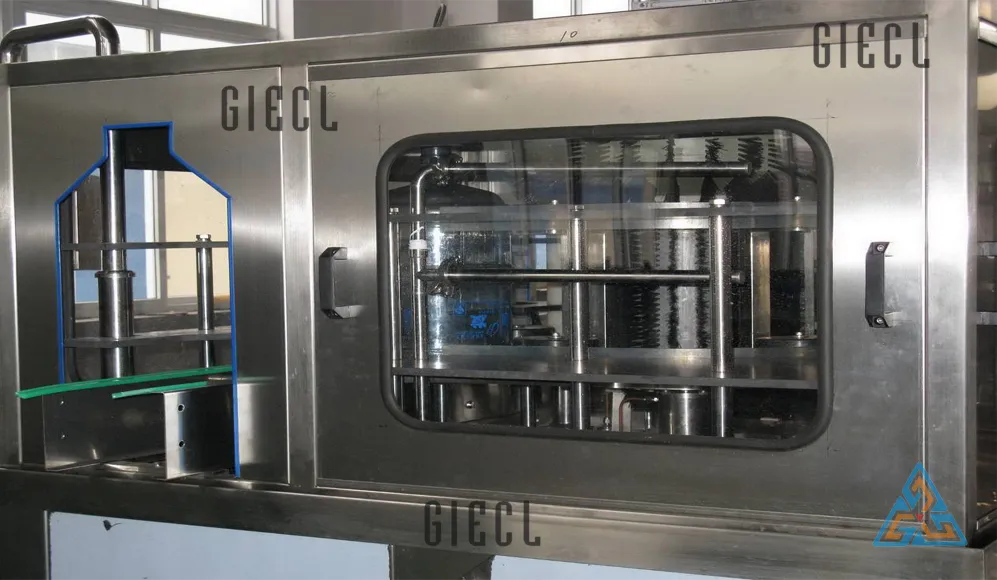

Rinser-filler-capper 3-in-1 Barrel Filling Machine

General description

QGF automatic barrel filling machine is exclusively used in producing 3/5 gallon barrel water.The production line can do automatically washing, sterilizing, filling, capping, barrel-out, with a good appearance, easy operate, low-loss energy & save water, high working efficiency. The frame of the machine is welded by 38*38 stainless steel square tube, with the characteristic of high intensity, good rigidity, light weight, aesthetic appearance, easy washing etc.

Main features

Implementing agencies is completed by the pneumatic system of automatic control procedure, automatic line detection, to achieve full automation

No bottle no washing, no bottle no filling, no bottle no capping

with change clock pulse to control filling accuracy

Only change some change part, this machine can filling 3 gallon barrel. (User should supply 3 gallon sample barrel).

The spraying nozzles of this machine import technology of USA spraying company, promoting spraying.

Adopting new type filling valve, prevent filling overflow.

Side-flow water channel, side-flow water tank, making it easy to clean the machine.


Cap elevator

The cap elevator is belt conveyor design, it adopts the time elevating principle, if there are not enough caps, the testing senor will send the single, and thus the elevator runs.

5 Gallon Water Project
5 Gallon Water Project

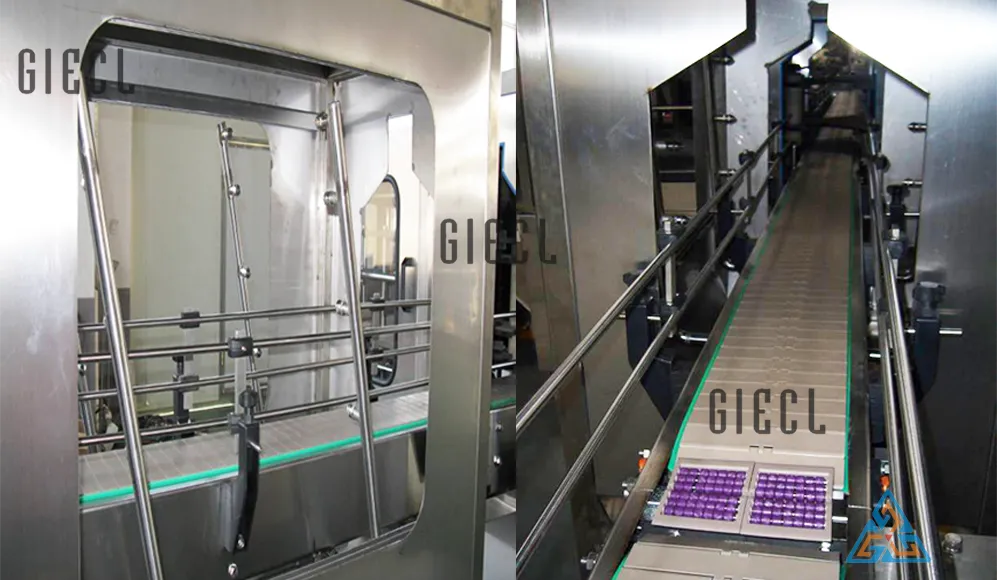

Light inspection

Light inspection box is covered with stainless steel, with appropriate and comfortable light of national sanitary standard, which can inspect clearly the impurity, defaults and grains.

5 Gallon Water Project

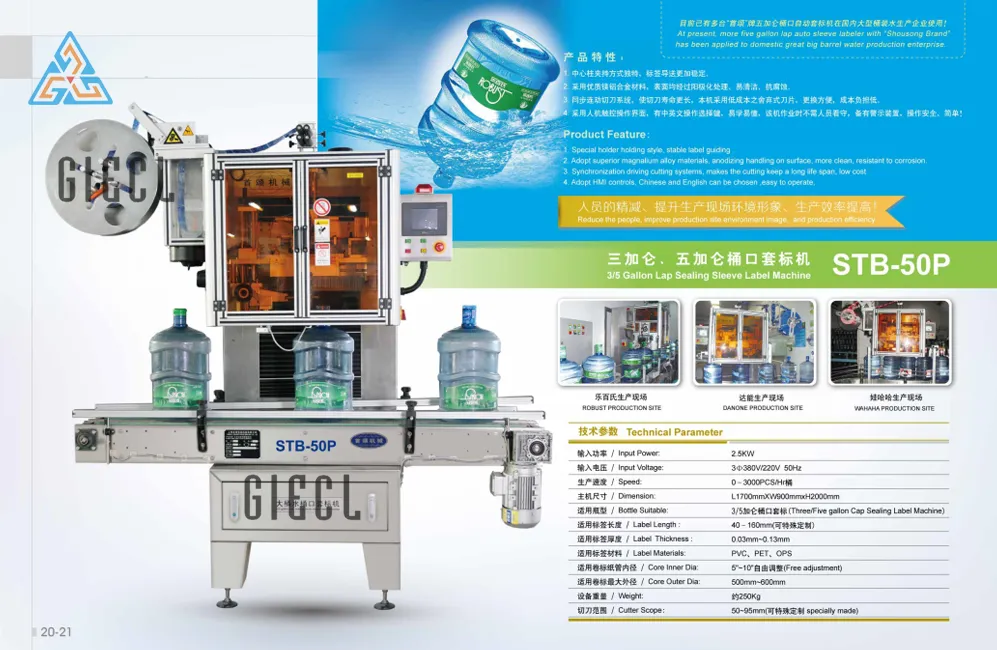

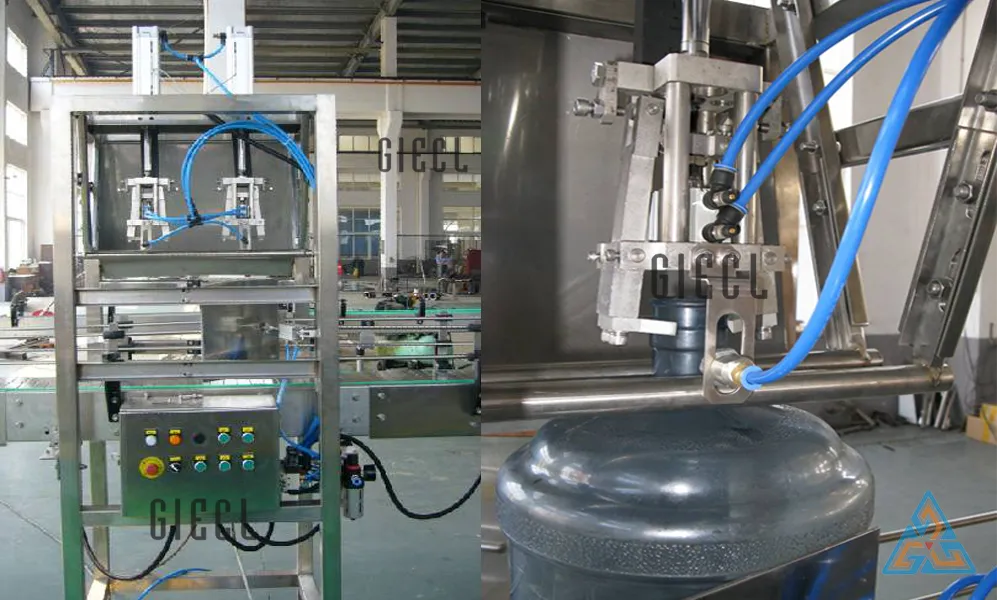

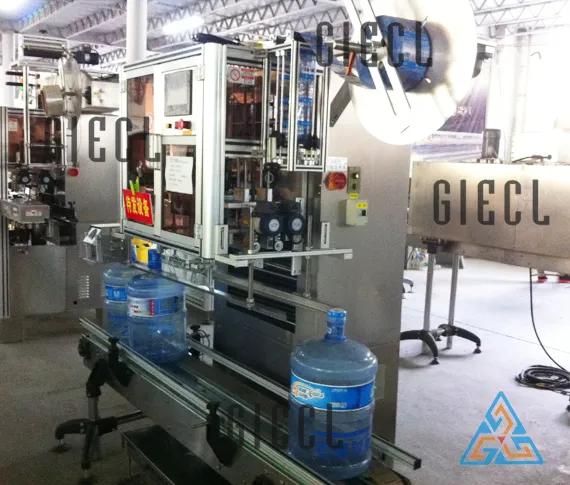

Gallon Cap Sealing Labeling Machine

5 Gallon Water Project
5 Gallon Water Project

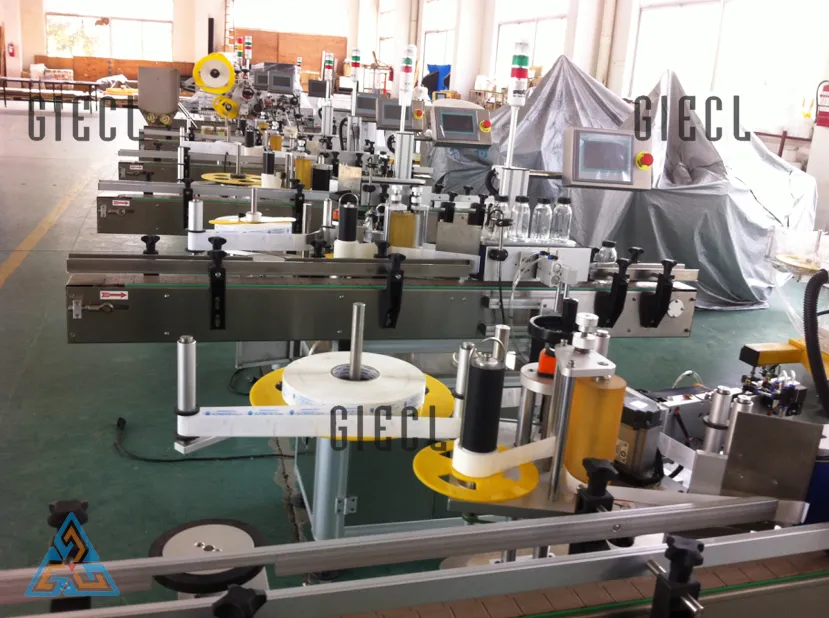

Self-adhesive Labeling Machine

5 Gallon Water Project

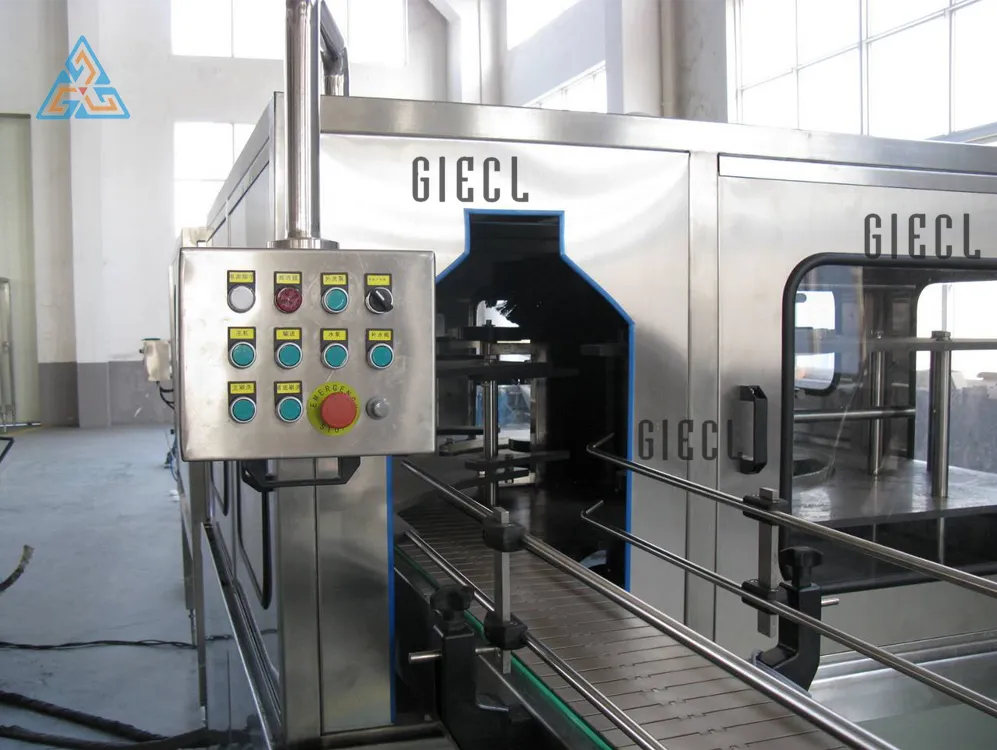

600 -1000 BPH 3/5Gallon Production Line On line barrel outer-brusher

5 Gallon Water Project

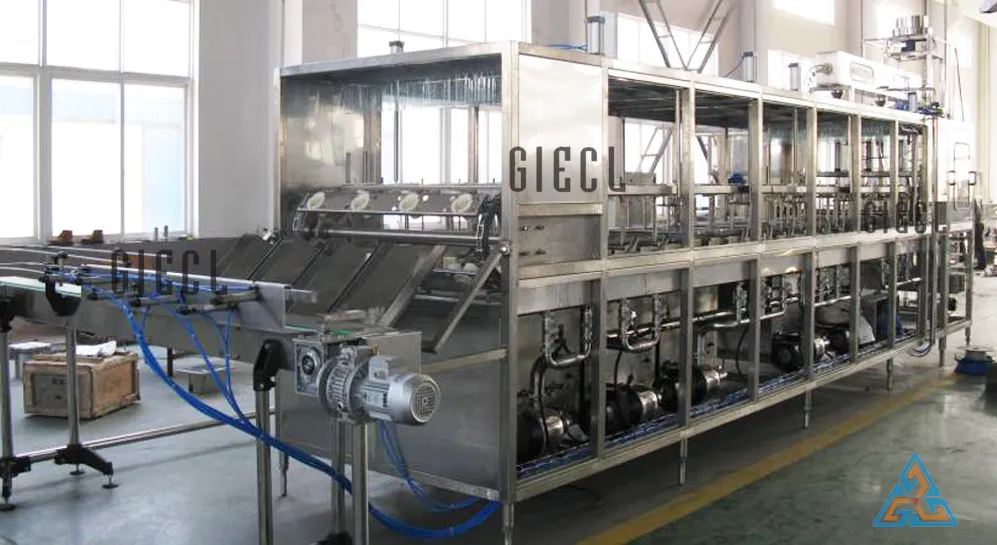

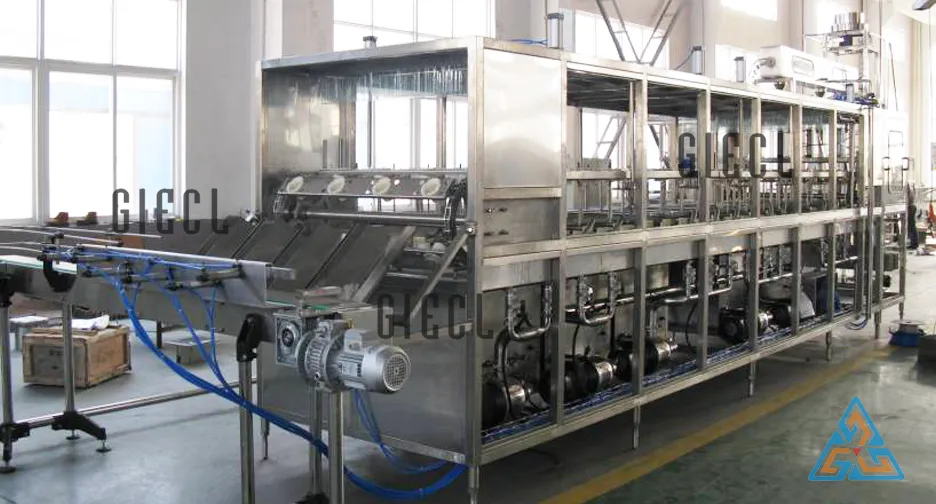

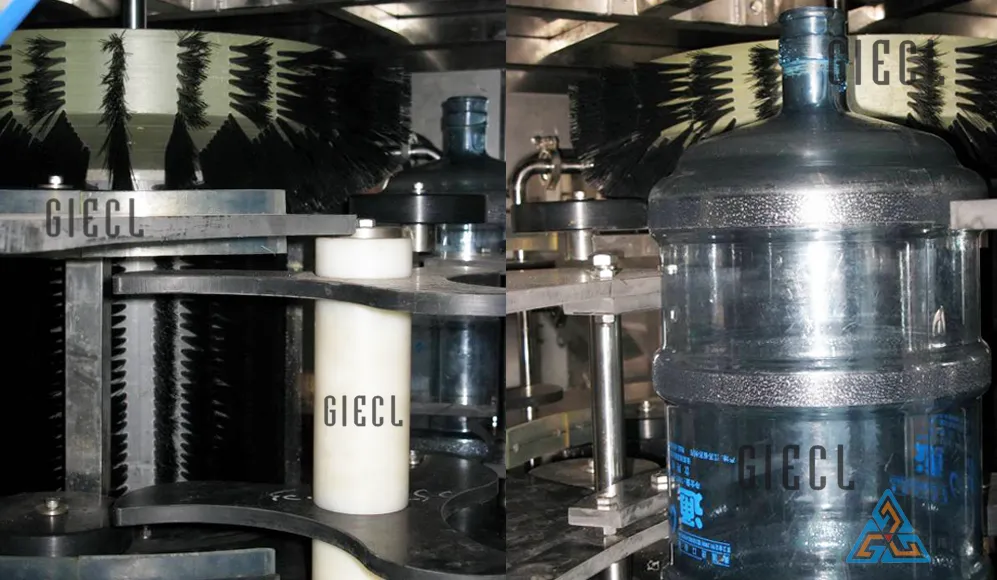

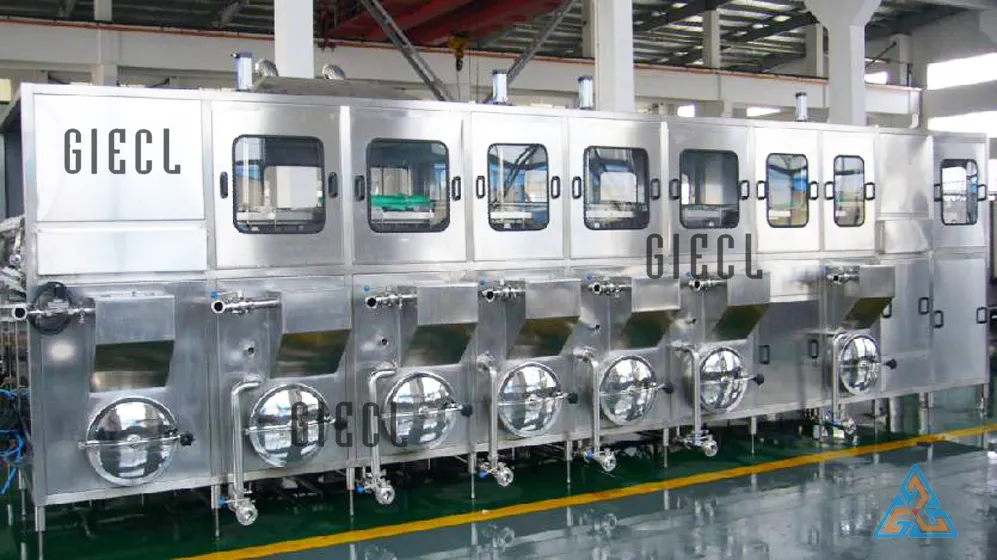

Gallon Barrel inside Washing Machine

5 Gallon Water Project
5 Gallon Water Project
5 Gallon Water Project

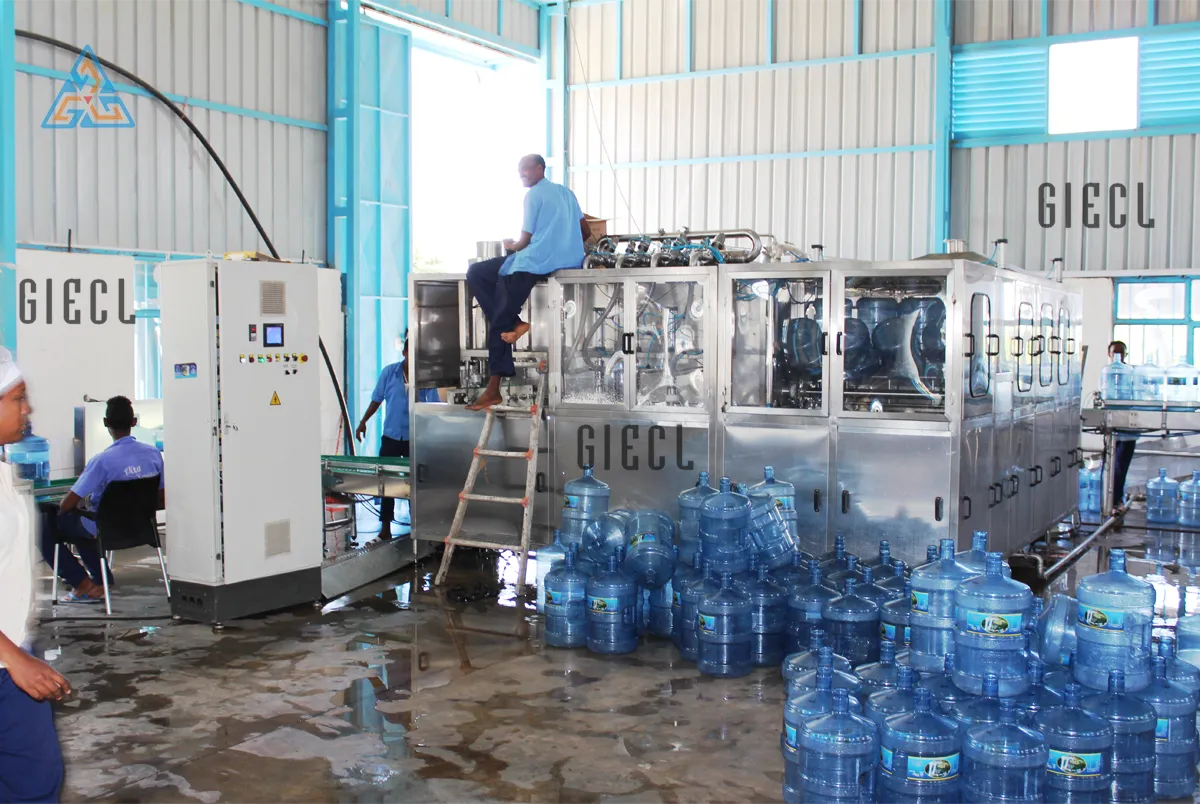

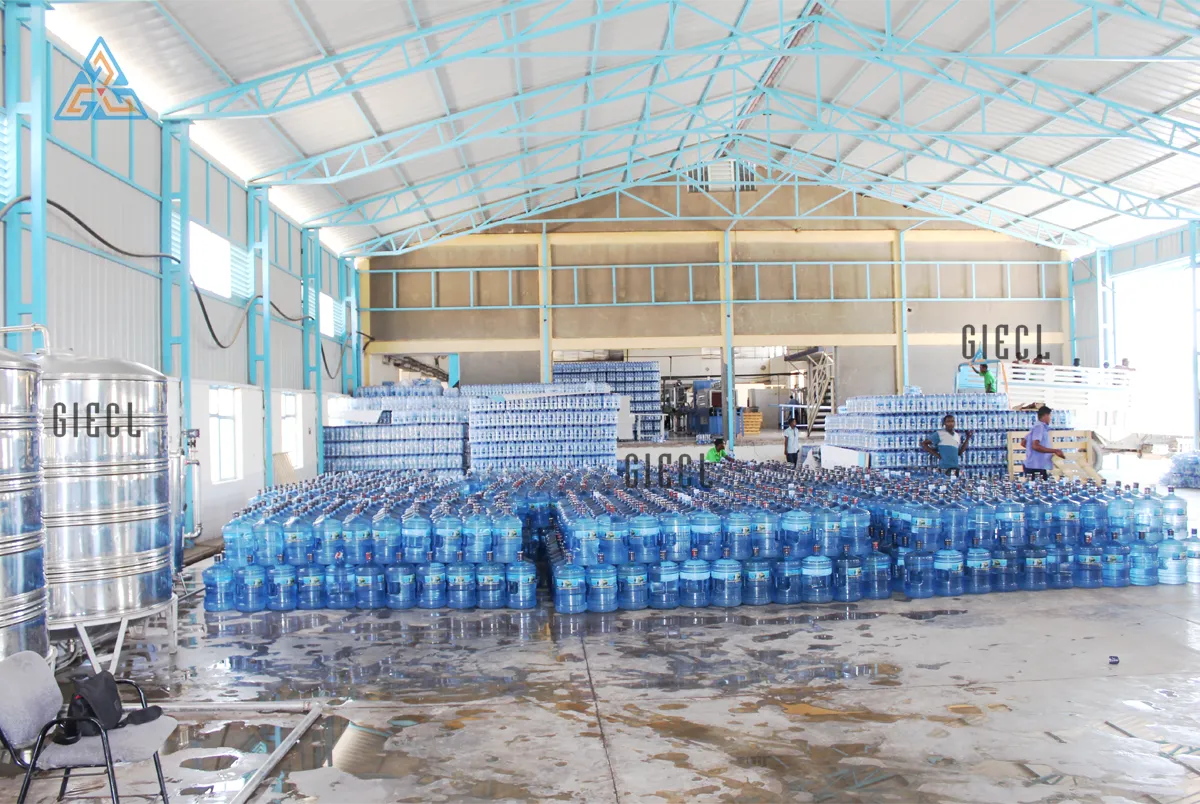

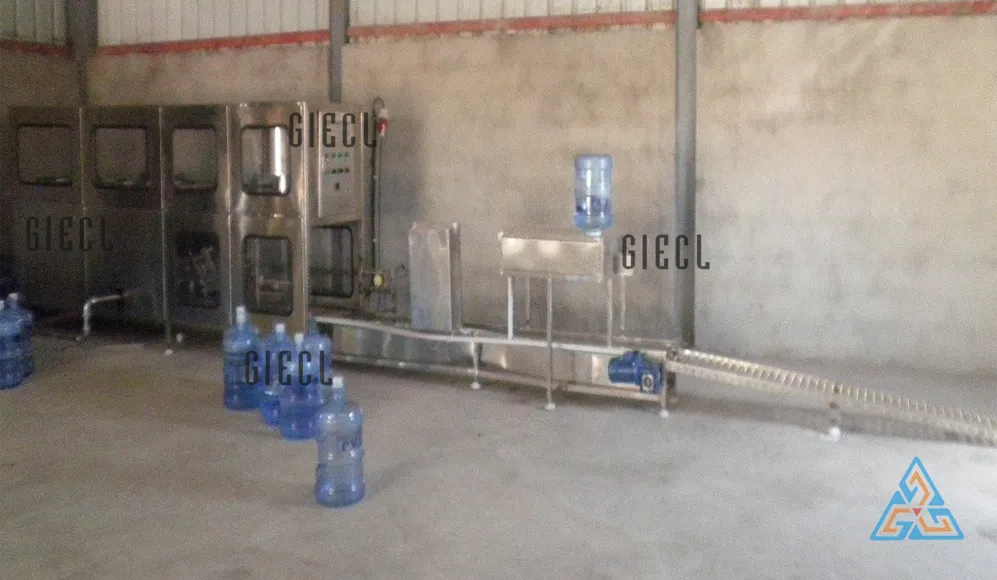

Some Pictures of 1,000BPH Filling Line in Workshop

5 Gallon Water Project

Bottle Dispatch Conveyor


product

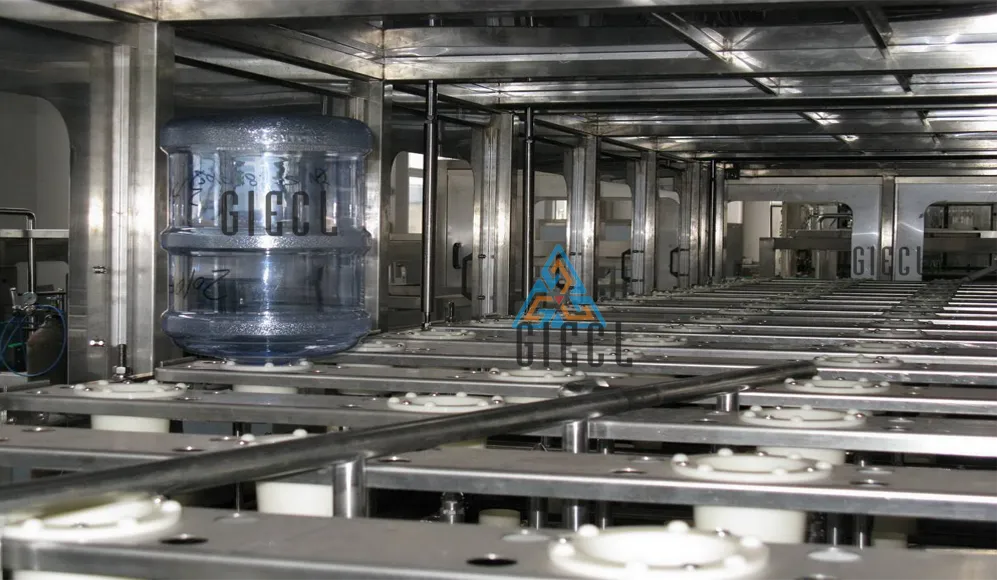

Bottle Travel Conveyor for Dispatch and Storage


5 Gallon Water Project
5 Gallon Water Project

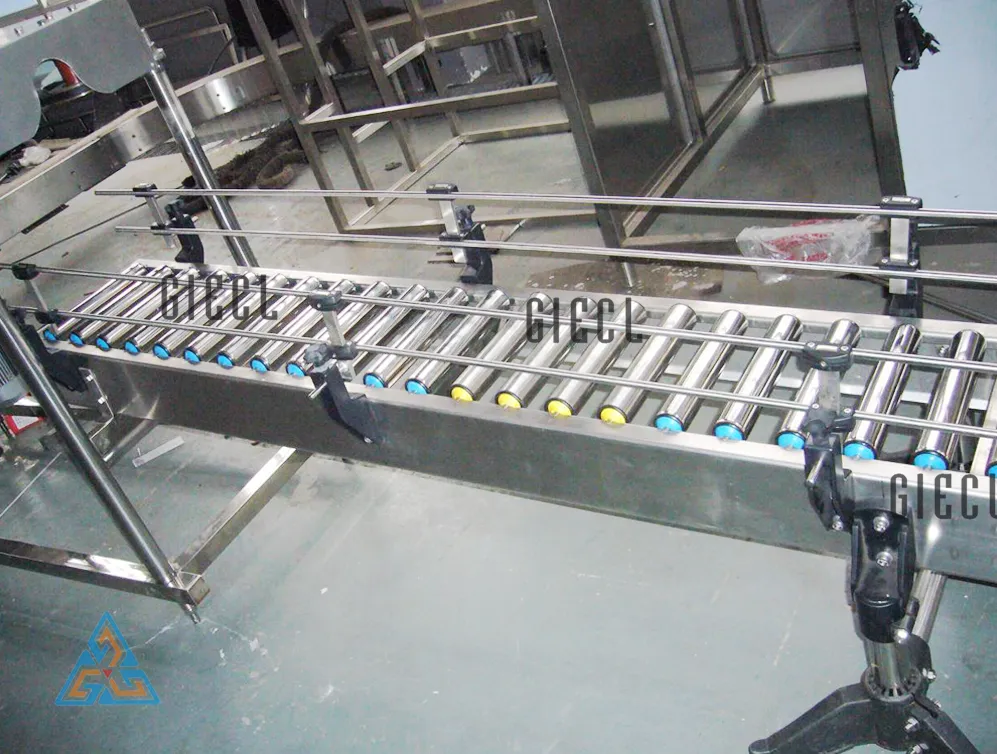

Bottle Travel Conveyor
