drinking water

Products Range

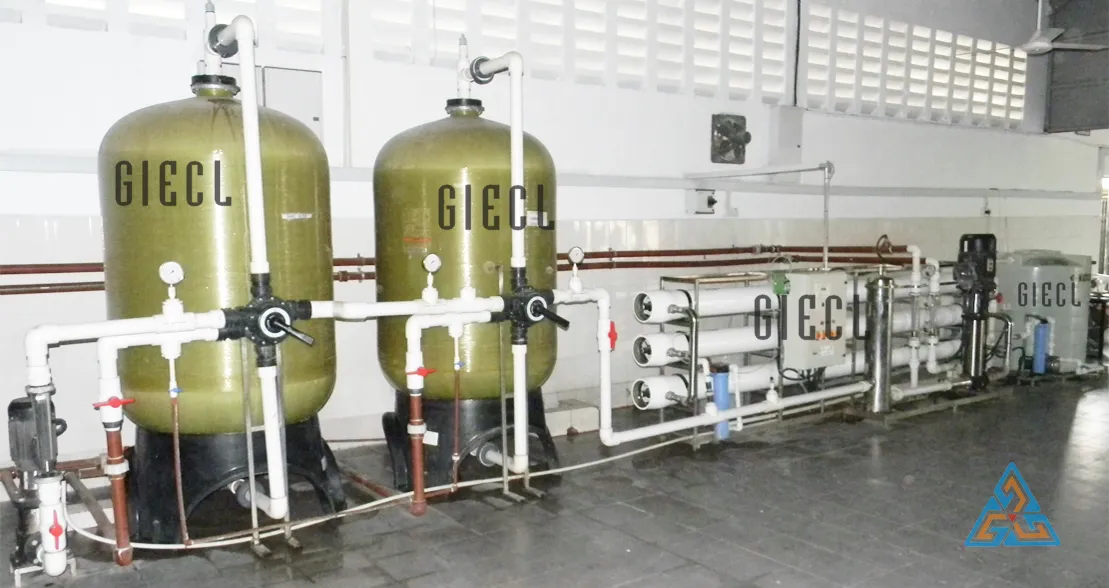

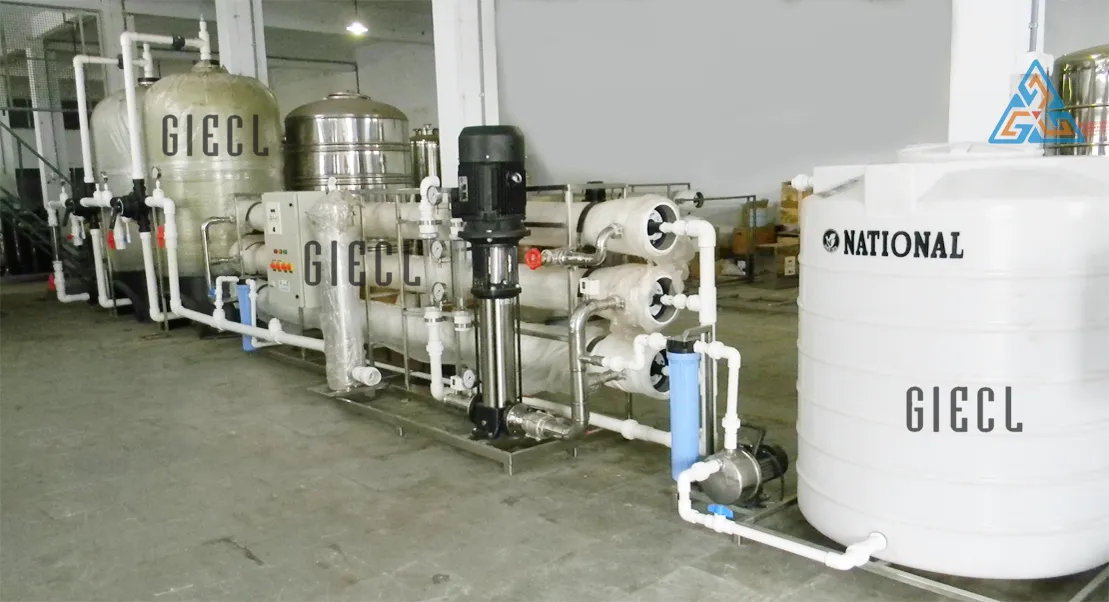

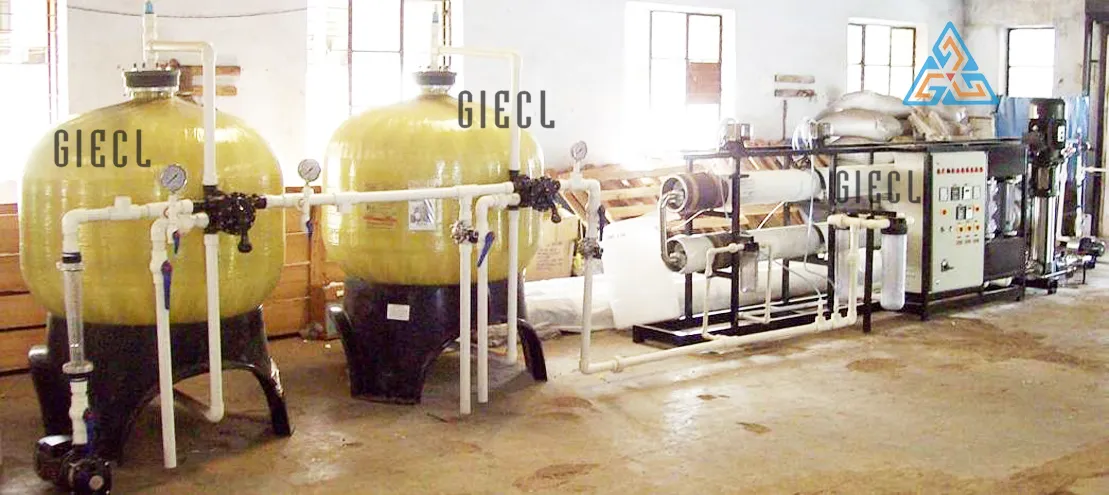

Brackish Water R.O.System for 15,000 LPH


FRP Constructed R.O.System with uPVC piping and Multiport valve having Pressure Sand Filter and Activated Carbon Filter with Grundfos Pump supply.
FRP Constructed R.O.System with uPVC piping and Multiport valve having Pressure Sand Filter and Activated Carbon Filter with Grundfos Pump supply.




The System consist with Auto Flushing System with vacuum Chlorine Dosing System for
The System consist with Auto Flushing System with vacuum Chlorine Dosing System for
Drinking water Civil supply

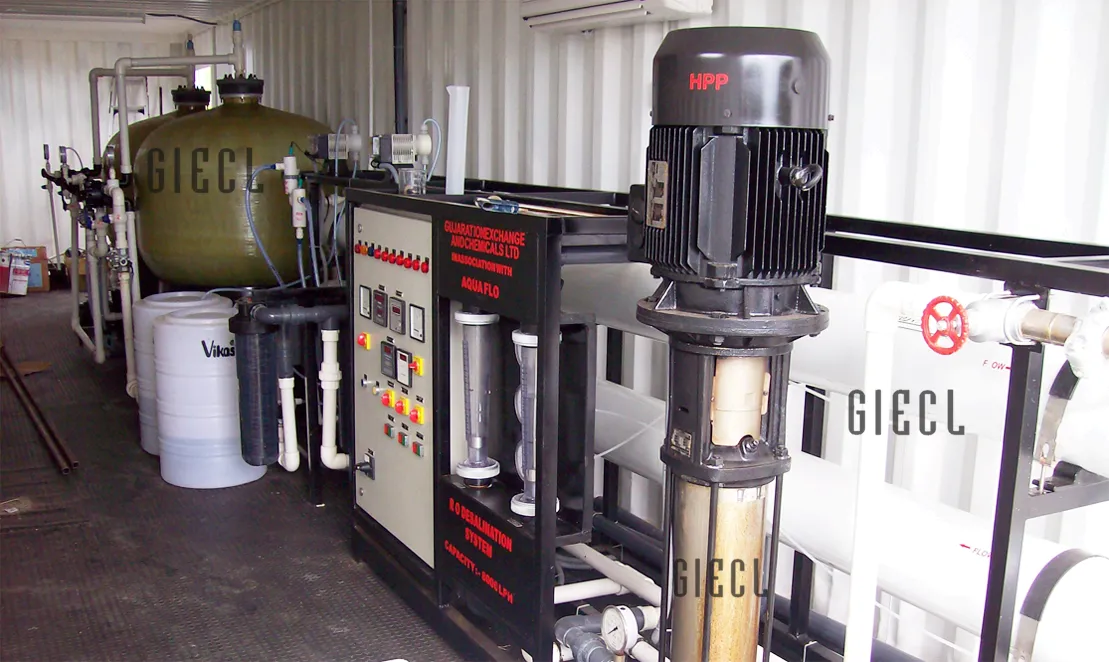

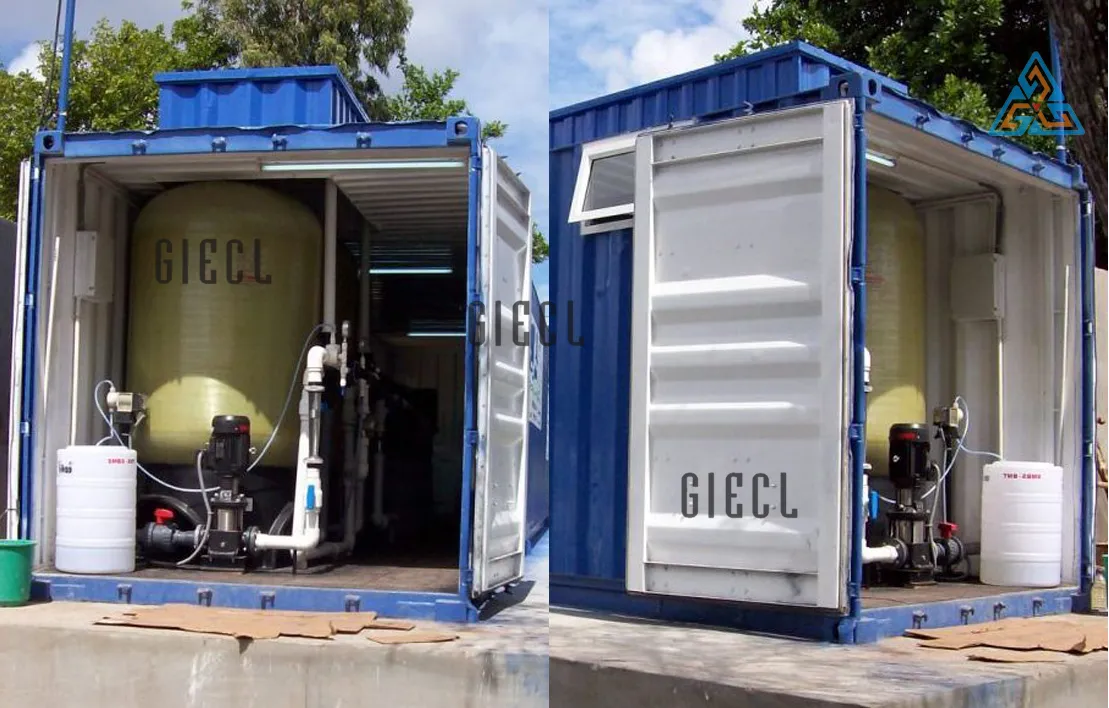

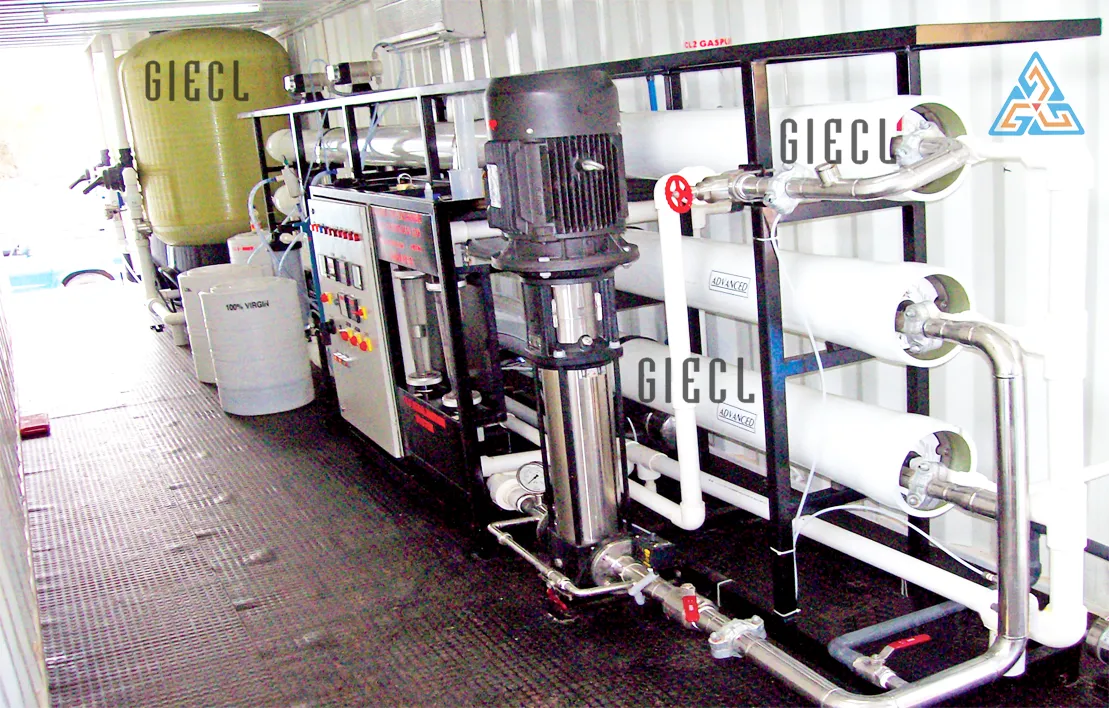

Same Plant installed in well furnished Container having Air Condition inside for Tropical condition
Same Plant installed in well furnished Container having Air Condition inside for Tropical condition.







Brackish Water system for 8,000 LPH

Brackish Water system for 8,000 LPH

Specially Develop FRP vessel which can fit on Container for the 8,000 Liters/Hour Product outlet for Brackish Water Treatment


Brackish Water system for 8,000 LPH





Brackish Water system for 10,000 LPH


Brackish Water system for 10,000 LPH

Brackish Water system for 10,000 LPH





Treatment Schemes

Sources of Water Giecl Treatment Schemes

Deep well water

Pretreatment with R.O.System

Bore Hole Water

Pretreatment with R.O.System

Open Well Water

Chlorination, Pretreatment with R.O.System

River Water

Chlorination, Filtration and Ozonation (Option: R.O.System)

Lake Water

Chlorination, Filtration with U.V.& Ozonation

Sea Water/Sea Source

Chlorination, Filtration with De-Salination, R.O.System and Ozonation



Model Selection

Model No.
Giecl

Product Output
Ltrs.(Gallon)/Hour

Treatment Scheme

Application

100 BW

100 (26.41)

MCF, HPP, R.O.System Mobile unit

Home, Hospital, Drinking, Kidney Dialysis, Process

500BW

500 (132)

MCF, HPP, R.O.System

Drinking, Green House Agriculture, Kidney Dialysis

1000BW

1000 (264.17)

PSF, ACF, ASD, MCF, HPP, R.O.System

Drinking Water, Boiler, Cooling Tower, Electronic Ind.

2000BW

2000 (528.34)

PSF, ACF, ASD, MCF, HPP, R.O.System. U.V. System

Beverages, Pharma, Textile, Industrial Application, Bottled Water, Soft Drink, Juice

5000BW

5000 (1320.86)

Cl2, PSF, ACF, ASD, MCF, HPP, R.O.System.

Pharma, Textile, Industrial Appliation, Soft Drink, Paper

8000Bw

8000 (2113.37)

Cl2, PSF, ACF, ASD, MCF, HPP, R.O.System.

Power Generation, Cooling Tower, Sugar, Textile, Dyeing

10000BW

10,000 (2641.72)

Cl2 ,PSF, ACF, ASD,MCF, HPP, R.O.System

Power Generation, Effluent Re- Cycling, Sugar, Textile, Dyeing


RWP : Raw Water Pump
SOF : Softening Unit
R.O. : Reverse Osmosis
MCF : Micron Catridge
Cl2 : Chlorine Dosing
ASD : Anti Scalent
U.V. : Ultra Violet
PSF : Pressure Sand Filter
Ozone : Ozonation System
ACF : Activated Carbon Filter
Hpp : High Pressure Pump
Coagu : Coagulation
