mineral water turnkey project


Project: - “Yanabee”, Palestine Rural Development and Industrial co. Project: - “Yanabee”, Palestine Rural Development and Industrial co.

Source Water: - Traditional source of supply from caves at Mountain with rich Olives Trees surroundings which supply the Best raw water quality which is Naturally mineral water.

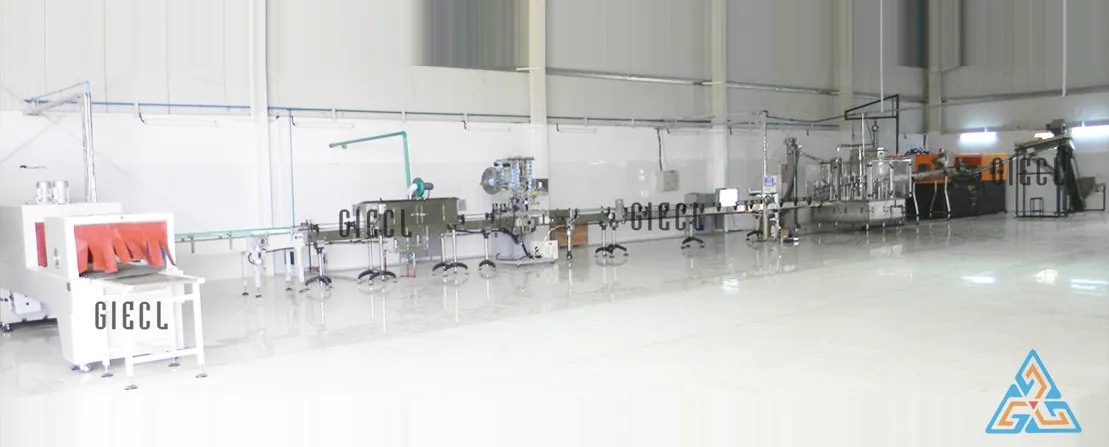

GIECL Automatic Turnkey Bottled Water Project for Mineral Water Industry
Model No. :- GIECL 4000 BPH (Bottles per Hour)
Product Range :- 500 ml to 2000 ml
Mineral Water Processing Plant

Scope of Supply:

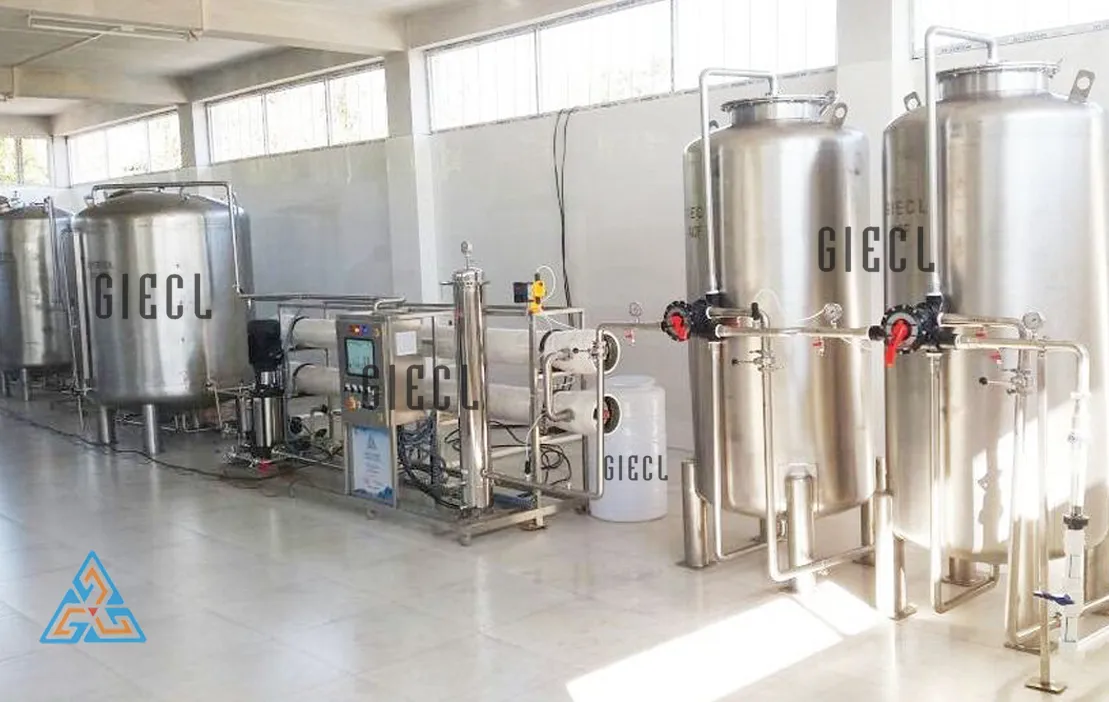

5000 Liters/Hour Mineral Water Treatment Plant with Pre-treatment, R.O.System, Ozonation, Tanks & Filters.

The Machineries are made from S.S. - 316 as shown here, All piping and vales made from S.S. - 316 Material at its optimizing performance. GIECL uses International Brands for Its Pumps, Membranes, Pressure Vessels and others Components for assuring the optimum output with consistent Quality.

GIECL Automatic Turnkey Bottled Water Project for Mineral Water Industry

GIECL R.O.System is Single Skid Mounted System and can be Installed at anywhere with Filtered water Inlet. This system consists of Chlorination, De-Chlorination, Pressure Sand Filter, Activated Carbon Filter, Antiscalent Dosing, MCF, HPP and R.O.Memebranes with Pressure Vessels and sophisticated Instruments with Programmed Control Logic for its full proof Operation. System Include the Electrical and Instrument Control panel on Skid.

GIECL Automatic Turnkey Bottled Water Project for Mineral Water Industry

GIECL Automatic Turnkey Bottled Water Project for Mineral Water Industry


GIECL Provides the S.S. - 316 Storage Tanks with MCF for Final Polisher of semi treated water after Mineral Adding. The Mineral rich treated water pass through the Ultra Violet System to the Ozonation Re-Circulation tank. The Tanks are with its S.S. 316 Supply pumps and Level Indicator and Controller.



GIECL Recommend the Ozonation for better Product self life once it is packed. GIECL Ozonation System with PSA Oxygen Generator and Air purification system before Ozone Preparation to avoid air contamination.



GIECL offers S.S. - 316 Re-Circulating Tank for better dissolution of Ozone in Treated water with re-circulating Pump and Final Product Supply Pump with all Piping and Valves. GIECL also undertake the Piping work from Storage Tanks to Rinsing & Filling Machines

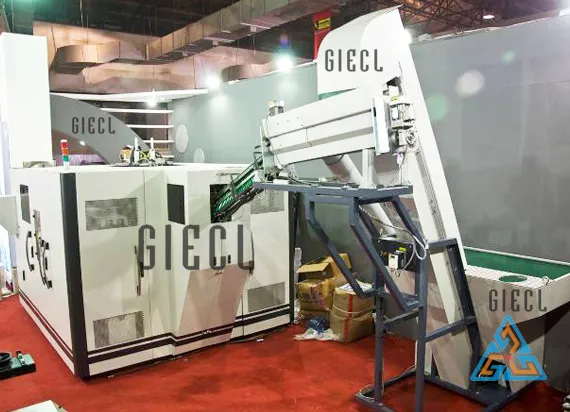

Automatic PET Blow Moulding Machine :- 4000 Bottles / Hour

Production Capacity
:
4000 Bottles per Hour @ 1000 ml
    3000 Bottles per Hour @ 2000 ml


4 cavities Machine


Automatic PET Blow Moulding Machine :- 4000 Bottles / Hour

Application: -  Empty Bottle Production
3000 – 4000 Bottles per Hour Automatic PET Blow Moulding Machine

Machine equipped with PLC Controlled with Preform Hooper and positing channel for automatic preforms loading. Machine also equipped with Auto ejector to transfer the empty bottles transfer to Air conveyor for filling machine. The conveyor also equipped with Bottle dropper in case of conveyor full with Bottles.

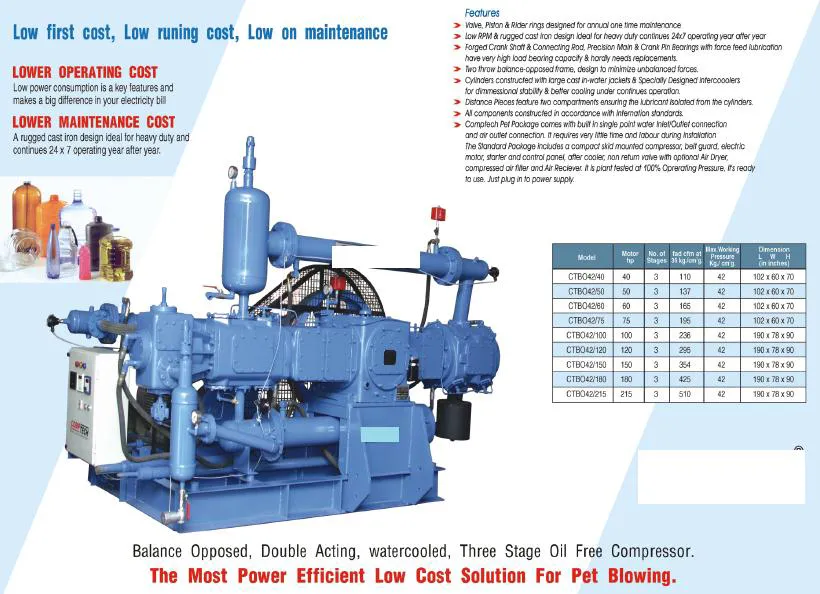

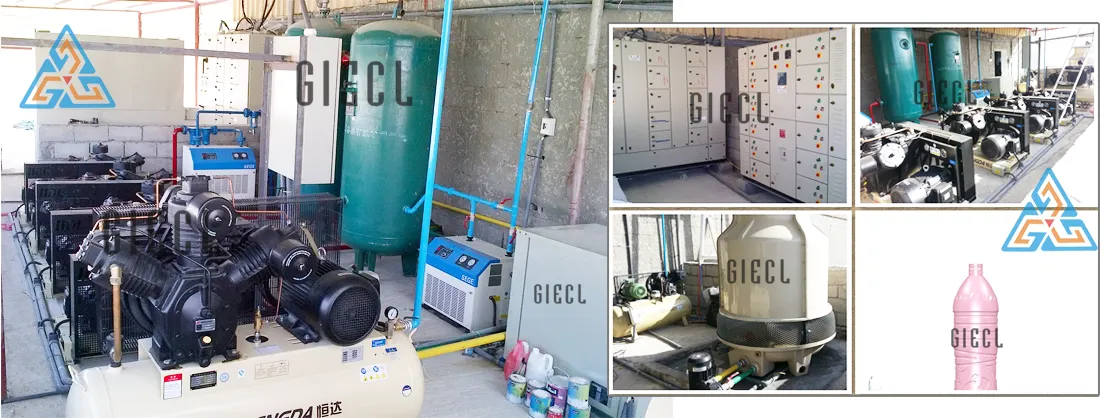

Machine Supplied with High Air Pressure Compressor with Mould, Cooling Tower, Air Dryer and Air Filter with other utilities

All pneumatic systems are with Festo Supply

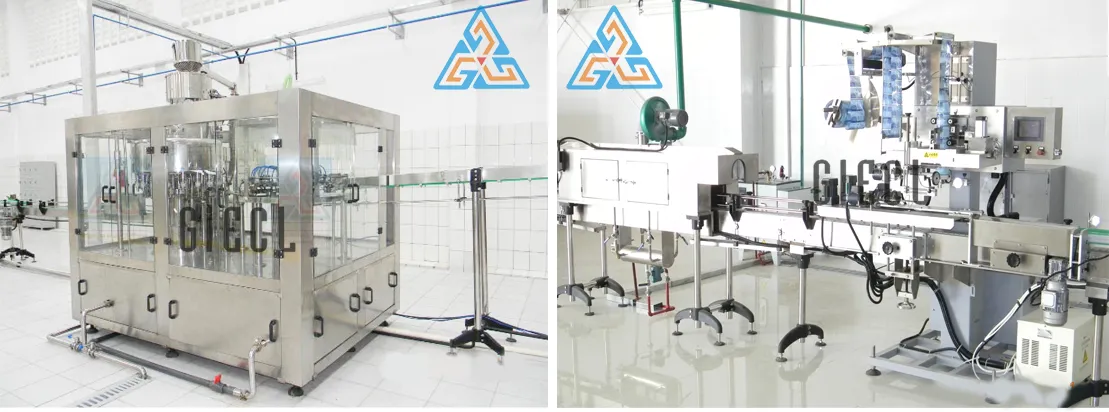

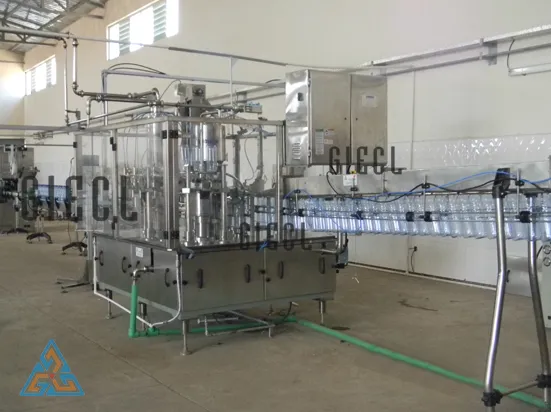

Bottle Rinsing, Filling and Capping Machine


Bottle Rinsing, Filling and Capping Machine

Bottle Rinsing, Filling and Capping Machine
Rinsing Head: - 12 Nos.
Filling Head: - 12 Nos.
Capping Head: - 4 Nos

Machine equipped with Auto Lubrication System with Neck Holding system to minimize the change parts between the different filling volumes of container.

The Filling machine has Air Exhaust type filling system which will fill the accurate filling volume in the Bottle. Such features eliminate the typical adjustment of filling volume especially when different product volumes to be fill.

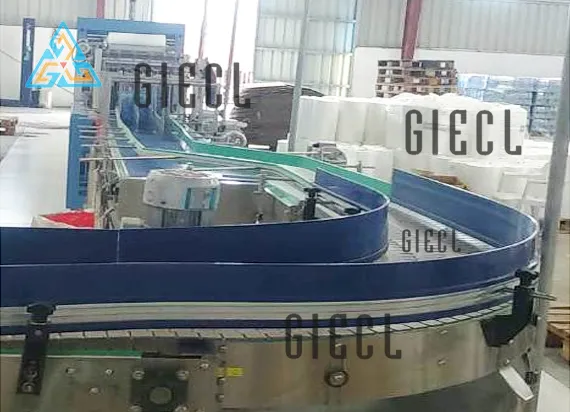

The Machine supplied with Air Conveyor and S.S. Slat conveyor for better handling and transportation of Empty and Filled Bottle

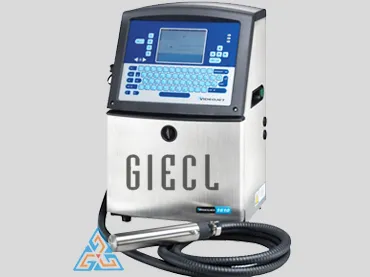

Batch and date Coding Inkjet Printer


Online Batch and Date Coding machine for continuous printing on Bottle

Two line or Four line Prating features are available

Machine origin from Imaje – France make.
Batch and date Coding Inkjet Printer

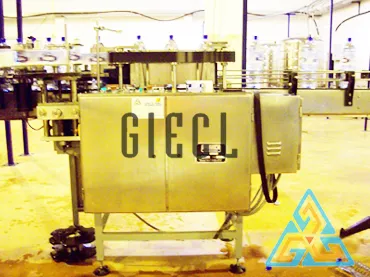

Self Adhesive Sticker Labelling Machine


Self Adhesive Sticker Labelling Machine

Self Adhesive pressure sensitive Sticker Labelling machine is economical solution for any automatic Labelling system requirement. With this concept the raw material cost is higher then any other labelling option.


Option:-



1 ) PVC Shrink Label :- Manual Loading with Shrink Tunnel

2 ) OPP Hot melt Label :- Automatic machine is require which capital investment is high but the Raw Material is cheaper than any other option

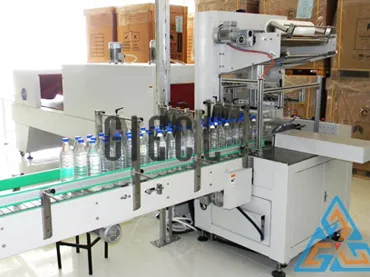

Shrink Wrapping machine :- Group Packing machine

Production Capacity
:
12 Nos. X 500 ml Bottle
    06 Nos. X 1500 ml Bottle

Shrink Wrapping machine :- Group Packing machine

Shrink Wrapping machine :- Group Packing machine


Automatic Group Packing Machine will produce the different sizes of group as per requirement and design.

The Finished product will transfer automatically to the shrink wrapping machine and packed in LDPE plastic film as per the group requirement without any corrugated tray.





Finished Product


Finished Product   Finished Product

Finished Product   Finished Product

The Finished group of bottle placed on pallets and stretch packed with machine and its ready to supply for the market after testing of Bottles and passed by QC people approval after 72 Hours




GIECL also work on Building requirement for the Project and help to our customer with detailed drawings and innovative idea which finally look as below


GIECL also work on Building requirement for the Project and help to our customer with detailed drawings and innovative idea which finally look as below

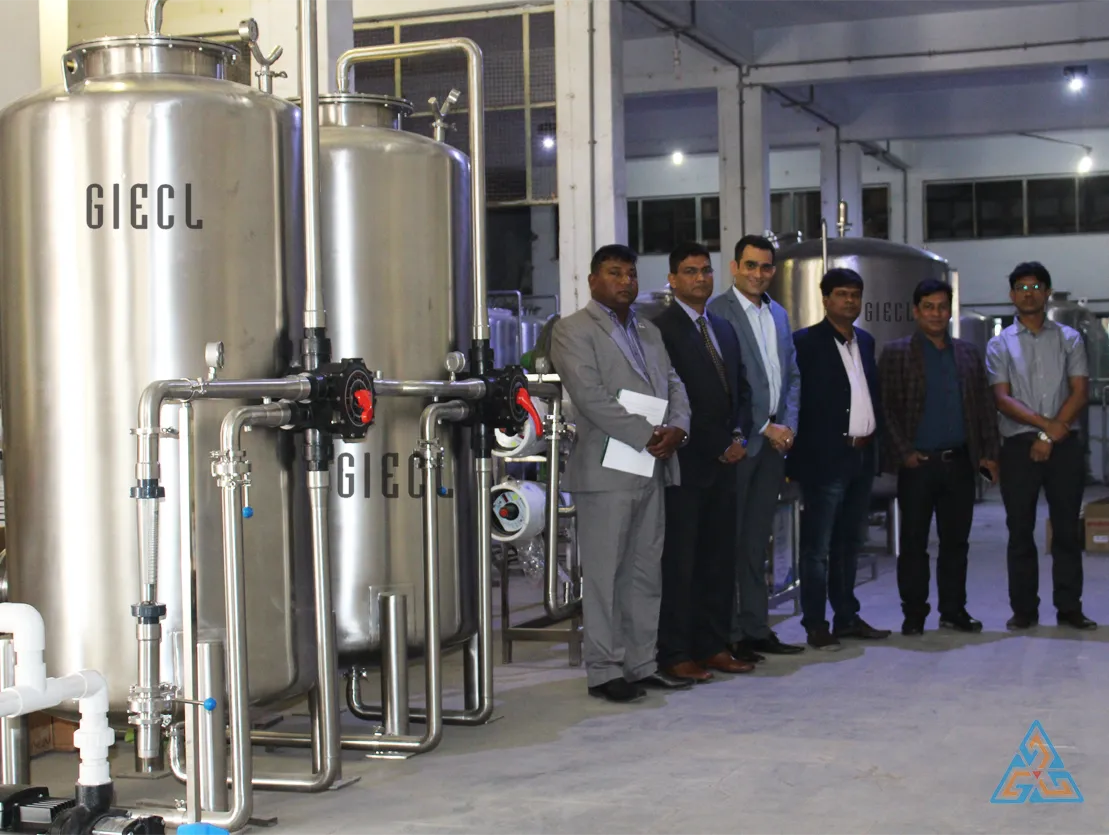

Engineers Team from GIECL, India & Local Team

Engineers Team from GIECL, India & Local Team Engineers Team from GIECL, India & Local Team


Final Conclusion:- Mr. Vyomesh Patel – M.D. , GIECL with Yanabee General Manager

Honourable Mr. Mayor Arab Sharafa with Project Engineer Mr. Ibrahim Hijazi

Final Conclusion:- Mr. Vyomesh Patel – M.D. , GIECL with Yanabee General Manager
Honourable Mr. Mayor Arab Sharafa with Project Engineer Mr. Ibrahim Hijazi




GIECL Take the Complete Turnkey Projects as per Customer's Requirements. GIECL has Affiliation with related Machineries manufacturers and have executed such Projects Nationally and Internationally

1.
GIECL Take the Complete Project right from Designing, Engineering, Manufacturing, Erection and Commissioning at site with Trail Production
2.
GIECL Provides all Technical supports for Buildings and Electrification for Projects
3.
GIECL supporting for Licenses and Documentation
4.
GIECL supply all Equipments as required and are responsible for its Installation.
5.
GIECL supply its all Components as per International standard and Multinational Manufacturer norm
6.
GIECL supply all Machineries with standard Spares and Consumables with Supply and post Monitoring of its uses
7.
GIECL Turnkey Project's Key Factor is its Low Production Cost as it is working by optimizing Efficiency
8.
GIECL strength is its Specialization in Training at Site which gives Trouble free Operation
9.
GIECL Furnish the Complete Installation and Commissioning at site in Record Period
10.
GIECL Technical Supports after Installation of Project gives customer strength and our Customer care department constantly monitoring the Operation by its Communication and documentation.
11.
GIECL also Provide 24 hours online phone and Physical Service Back up to its Customer having contract with UPS and DHL services for immediate supply
12.
GIECL also making Flying Visit to its existing customer for observation and maintenance & operation at site
13.
GIECL believes in Strong and Long terms Customer relationship
