Product
Range :- 500 Liters./Hr to 20,000 Liters./Hr.
|
| |
| Sources
of Water |
GIECL
Treatment Scheme |
| Deep
Well Water |
Pretreatment with
R.O.System, U.V.System
|
| Bore
Hole Water |
Pretreatment with
R.O.System, U.V.System,
Ozonation
|
| Open
Well Water |
Chlorination, Pretreatment With
R.O.System, U.V.System, Ozonation.
|
| River
Water |
Settling, Chlorination, Filtration,
U.V.System, MCF and Ozonation
|
| Lake
Water |
Chlorination and Filtration with
U.V.System,
MCF & Ozonation
|
| Sea
Water or Sea Source |
Chlorination, Pretreatment With
De-Salination, R.O.System, U.V.System, MCF and Ozonation
|
|
| |
| Note: - For Bottled
water Industry GIECL will not suggest to go with River Water. |
| |
|
The Below
Mentioned Treatment Scheme and Equipments based on the Above Source
of Water |
| |
|

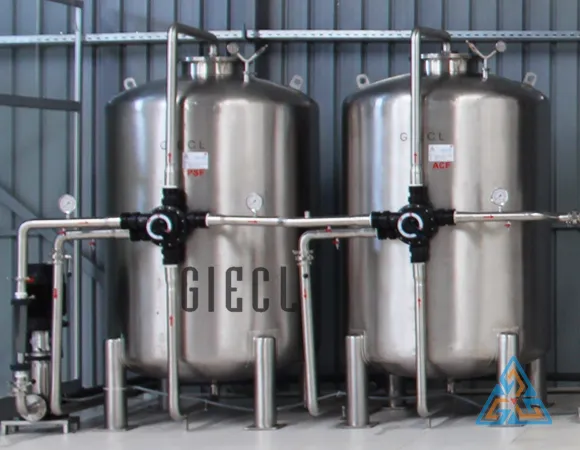

Pretreatment: - ( PSF &
ACF ) |
| |
 |
|
Application:- Removal for Turbidity, Suspended,
Colour, Odour, Organic Impurities |
|
|
|
Pretreatment
Include Chlorination, Raw Water Pump, Pressure Sand Filter (PSF),
SMBS,
Activated Carbon Filter (ACF) with piping, Valves & Instruments
in S.S. – 316. |
|
|
|
Filters made
out from 3 mm Thick S.S. Sheets with 4 mm Dishend and 8 mm Body
Flange with tested pressure of 8 Kg/Cm2 with Piping and
Valves. |
|
|
|
|
|
|
Application:- For Backwash and Rinsing of Filters |
|
|
|
S.S. 316
Multi Port Valve for Hygienic condition against PVC |
|
|
|
Easy Operation for Back Wash
and Rinsing Mode |
|
|
|
Maintenance Free Operation |
|
|
|
| |
| |
|

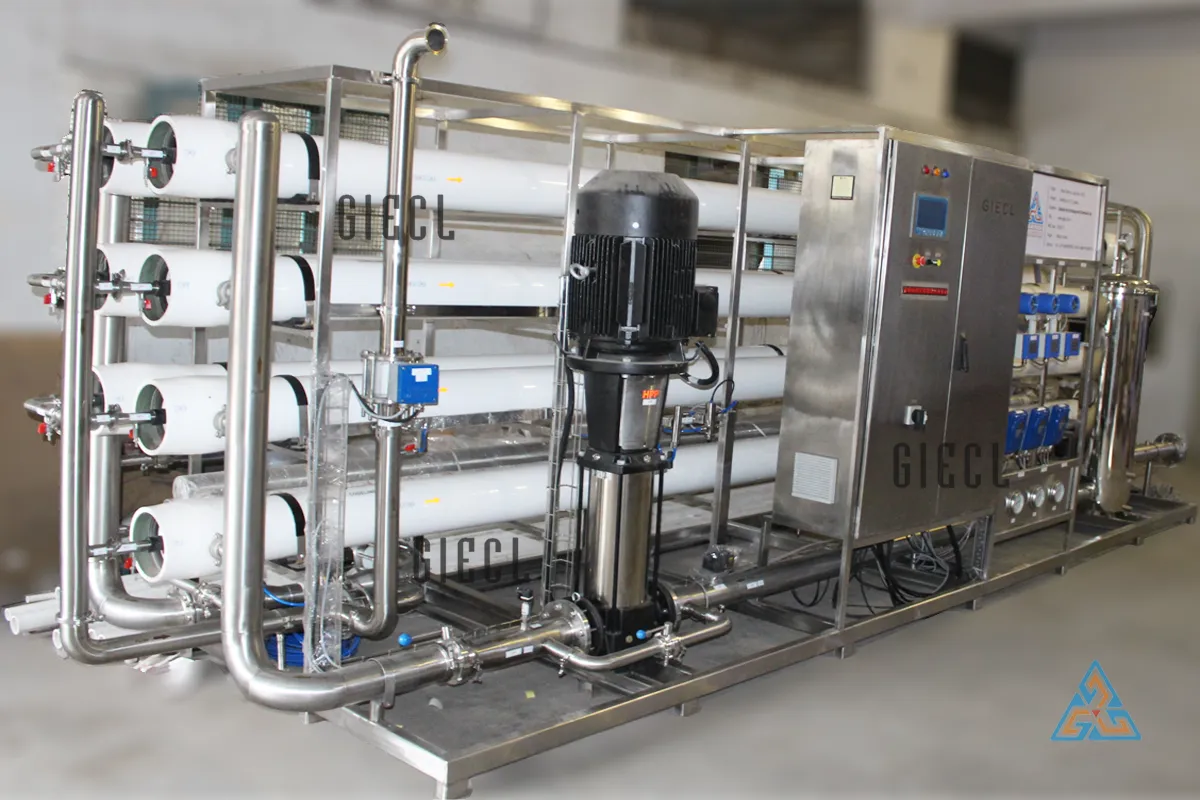

Reverse Osmosis System: - ( R.O.Plant ) |
| |
|
|
| |
|
Application:
- To Reduce
the Total Dissolved Solids (TDS) from Raw Water Source. |
| |
| Reverse
Osmosis System include Pressure Tube, R.O.Membranes, High
Pressure Pump, Micron Cartridge Filter, Anti Scalent Dosing Pump,
Flow Indicator, Pressure Gauges and Switches, Electrical Panel,
U.V.System with S.S. Flexible and rigid Piping and Valves.
Mounted on S.S. Structural Skid. |
| |
| 4” Long
X 40” Long R.O. Membranes has 0.0001 Micron Porosity which will
enable to reduce the TDS about 99 % from its input values. Also
remove the Bacteria and Virus, Arsenic, Iron, Silica, Pesticides,
Fluoride and all Major available content from Water |
| |
|
R.O.Membranes: - DOW or GE
Osmonics. Pressure Tube : - Pent Air /
Advance
|
|
High Pressure Pump :- Grundfos Dosing Pump : - Enjecta / Toshcon / E Dose
|
|
Operating Pressure :- 10 – 14
Kg/Cm2
|
| |
|

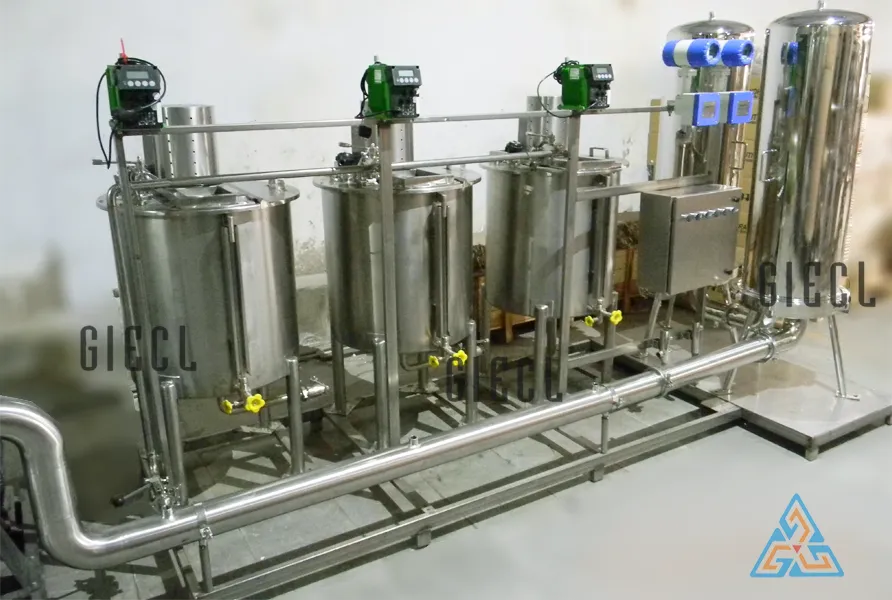

Mineral Adding System |
| |
|
|
Application :- For
Taste enhancement
R.O.Product
water has very less TDS value which is not good in Taste. The
Water gets bitter and to enhance the taste GIECL providing the
Mineral Adding system or Blending system.
The
Stirrer will mix the physical mineral in to the Mixing tank and
Dosing pump will dose the Mineral to R.O.Product water before
Ozonation with TDS Controller.
|
|
| |
| TDS adjustment
can be done with Blending system by adding Filtered water after ACF
through the proper treatment. |
| |
|
Such Blending system is very easy in Operation and it will
naturally balanced the TDS in to the R.O.Product water |
| |
|

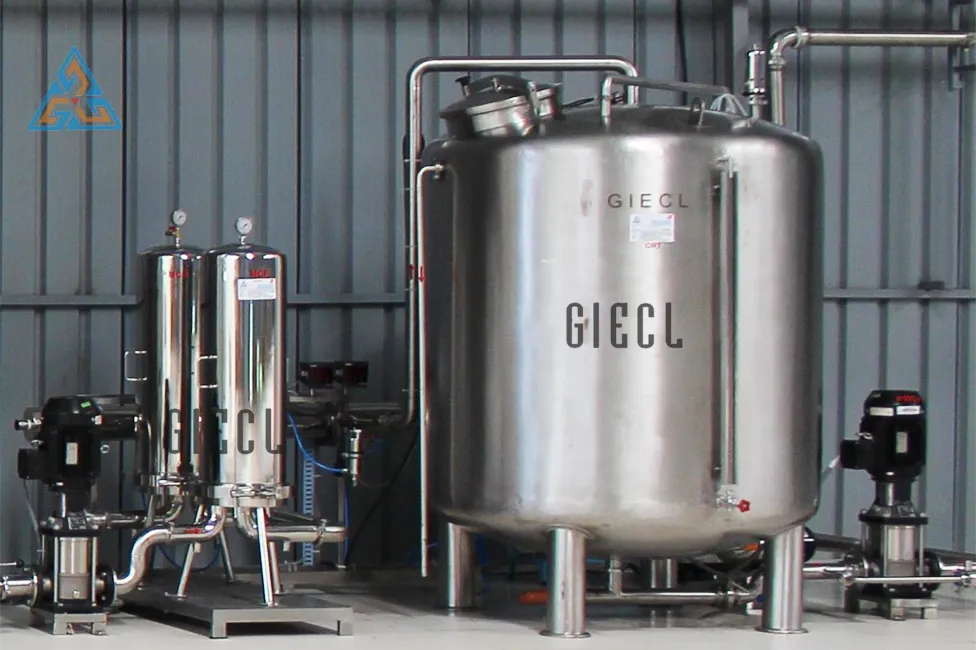

Absolute Micron Cartridge Filter: - MCF |
| |
|
|
Application:
- Fine Filtration 1 & 0.2 Micron
After the Mineral Adding
water will ass through the 1 & 0.2 Micron Absolute Micron
cartridge filter which will take care for fine micron impurities.
The Sanitary type housing and
Filter will assure the High Quality Treated Water before
Ozonation.
It will also take care for
some part of bacteria and virus.
Complete in S.S. – 316 material with PP Pleated cartridge.
|
|
| |
|

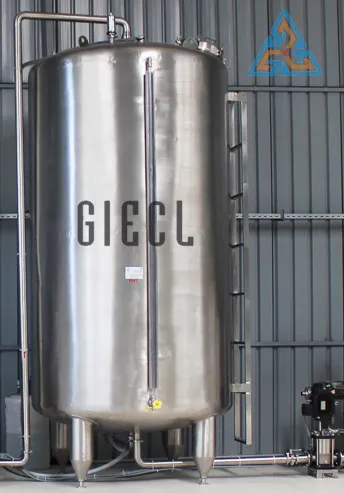

Post Treatment: - U.V.System & Ozonation |
| |
|
|
Application: -
Bacteria, Virus & Self Life
System
Supplied with Ultra Violet System followed by Ozonation System.
S.S. 316
Micro Polished U.V.System will remove the Micro Biological Growth
after R.O.System.
U.V.Treated water will
pass through the Ozonation system which Include S.S. – 316 Re-Circulation
Tank with Pump
Ozonator
will produce the Ozone gas from Free Atmosphere, Dry air or PSA
Oxygen generator
Ozone gas
will inject with Ventury System mounted on Tank with Re-Circulation
Tank and Pump. Continuous Re-circulation will provide the ozone
concentration to the Product water before Bottling.
|
|
| |
| A typical 4
– 6 ppm Ozone saturation will takes place before bottling the water
which will assure for Long Self life of Product. |
| |
|
2000 LPH Mineral Water Plant |
| |
|
|
| |
|
GIECL – 2000 Liters/Hour
Mineral Water Processing Plant complete in S.S. – 316 for Small and
Medium Scale Industry
|
|
|
|
Plant can provide the High Quality
treated water for any water source and can run for 2000 ppm to 3000
ppm TDS water source.
|
| |
| Abbreviations Used: - |
| |
|
Cl2 - Chlorine Dosing
R.O. - Reverse Osmosis
U.V. - Ultra Violet
Ozone - Ozonation System
|
RWP - Raw Water Pump
ASD - Anti Scalent
HPP - High Pressure pump
|
PSF - Pressure Sand Filter
ACF - Activated Carbon Filter
MCF - Micron Cartridge
|
|
| |
|
GIECL -
Model
|
Material
of Construction
|
Treatment
Schemes
|
|
500 LPH
|
S.S. - 316 /
FRP
|
Pretreatment,
R.O.System, Tanks
|
|
1000 LPH
|
S.S. - 316 /
FRP
|
Pretreatment,
R.O.System, Tanks, Ozone
|
|
2000 LPH
|
S.S. - 316 /
FRP
|
Pretreatment,
R.O.System, Tanks, Ozone
|
|
2500 LPH
|
S.S. - 316 /
FRP
|
Pretreatment,
R.O.System, Tanks, Ozone
|
|
2500
FIL
|
S.S. - 316 /
FRP
|
Chlorination, Filtration, Tanks,
U.V, Ozone
|
|
5000 LPH
|
S.S. - 316 /
FRP
|
Pretreatment,
R.O.System, Tanks, Ozone
|
|
10,000
LPH
|
S.S. - 316 /
FRP
|
Pretreatment,
R.O.System, Tanks, Ozone
|
|
10,000
Spring
|
S.S. - 316 /
FRP
|
Chlorination, Filtration, Tanks,
U.V, Ozone
|
|
| |
|
|
|
|
|
 |
|
