Gujarat Ion Exchange And Chemicals Limited

mineral water turnkey project

GIECL Turnkey Project for Mineral Water Industry includes Following

Model No. :- GIECL1000TK



Product Range :- 500 Liters/Hour to 20,000 Liters/Hour and Above



Complete Mineral Water Treatment Plant with Pretreatment, R.O.System, Ozonation, Tanks & Filters.



The Machineries are made from S.S. - 316 as shown here http://www.giecl.com/mineral-water-plant.html . All piping and vales made from S.S. - 316 Material at its optimizing performance. GIECL uses International Brands for Its Pumps, Membranes and Pressure Vessels and Components for assuring the Guaranty and Warranty.

The Most important is GIECL has develop its own S.S. - 316 Multi Port Valve (MPV) instead of PVC. Such PVC valves needs frequent Maintenance after its installation & Operation also there are more chances of its Breakages. Whereas GIECL S.S. MPV is Life time Maintenance free this made out from S.S. - 316 hard blocks instead of Casting.

This Unique Four Way valve gives simple operation of Filters and saving important time during Backwash and Rinsing. With this valve the Piping structure are simple and can be easily maintain.

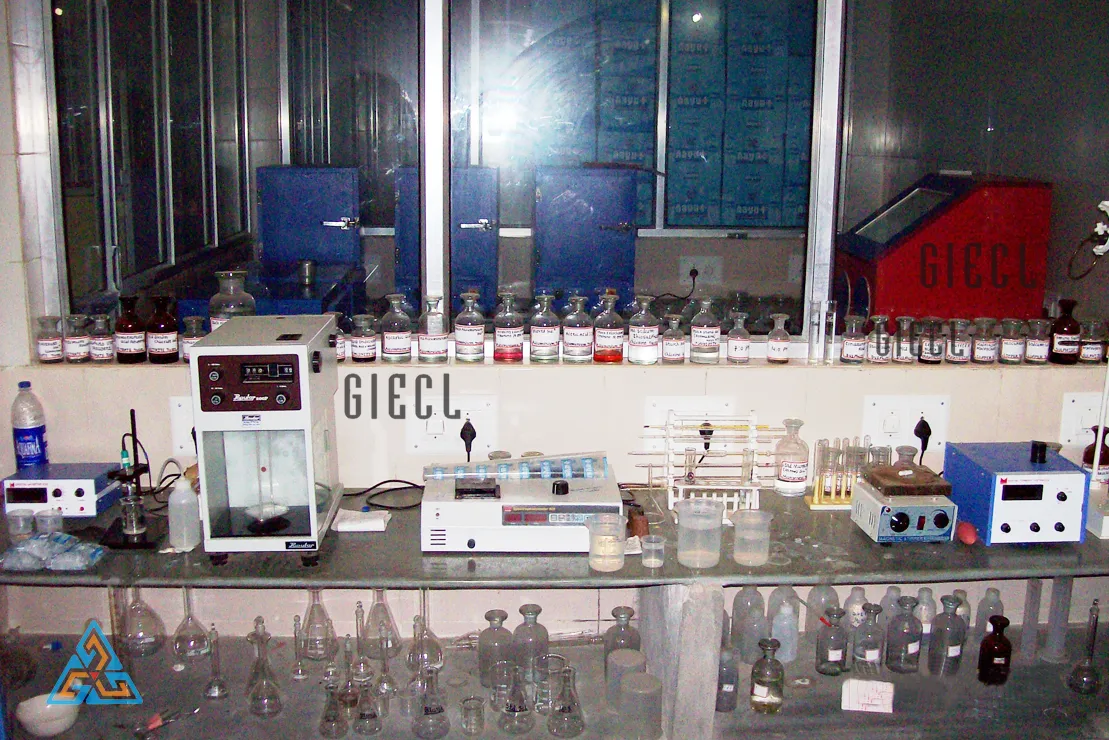

GIECL uses Pebbles, Silex and Graded Sand which is specially developed with its own experience at R & D Department. Generally peoples consider that it’s simple Sand which can filters the water with any sand available in local market. But if it doesn't give the Micron porosity to the Filters then the further Treatment may fail to Operate and it may cause of the Product Failure.

GIECL recommend the high grade Granule Activated Carbon with 900 - 1100 Charged Iodine Value which gives Crystal Clear water for Drinking and Bottled water application. The Service life of such Carbon is longer then the Normal Carbon.

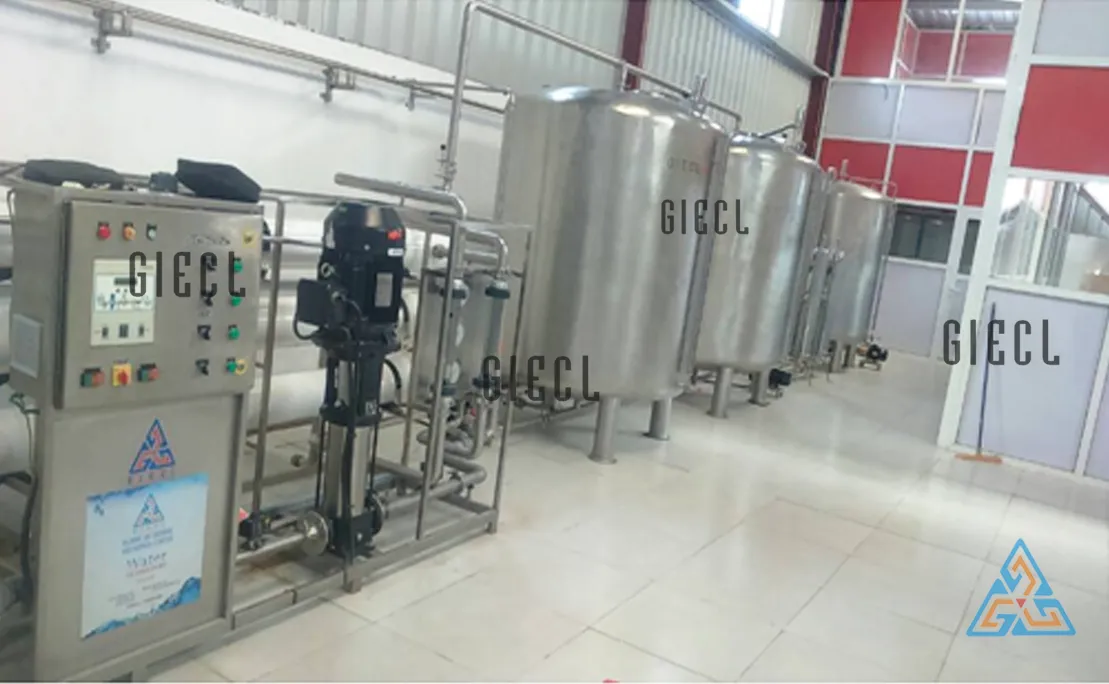

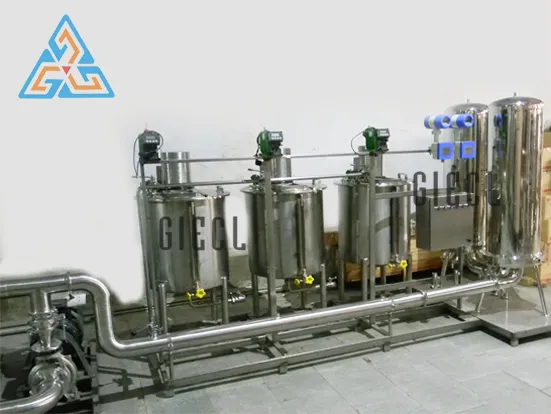

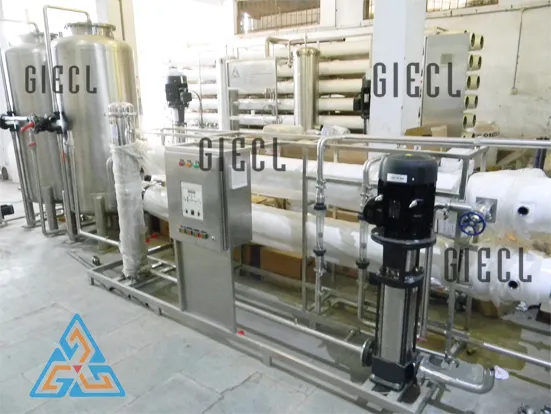

GIECL R.O.System is Single Skid Mounted System and can be Installed at anywhere with Filtered water Inlet. This system consists of Antiscalent Dosing, MCF, HPP and R.O.Memebranes with Pressure Vessels and sophisticated Instruments for its proper controls. System Include the Electrical and Instrument Control panel on Skid.

GIECL Provides the S.S. - 316 Storage Tanks with MCF for Final Polisher of semi treated water. Storage tanks are with its S.S. Supply pumps and Level Indicator and Controller.

GIECL Recommend the Ozonation for better Product self life once it is packed. GIECL Ozonation System with PSA Oxygen Generator and Air purification system before Ozone Preparation to avoid air contamination.

GIECL offers S.S. - 316 Re-Circulating Tank for better dissolution of Ozone in Treated water with re-circulating Pump and Final Product Supply Pump with all Piping and Valves. GIECL also undertake the Piping work from Storage Tanks to Filling Machines



mineral water turnkey project

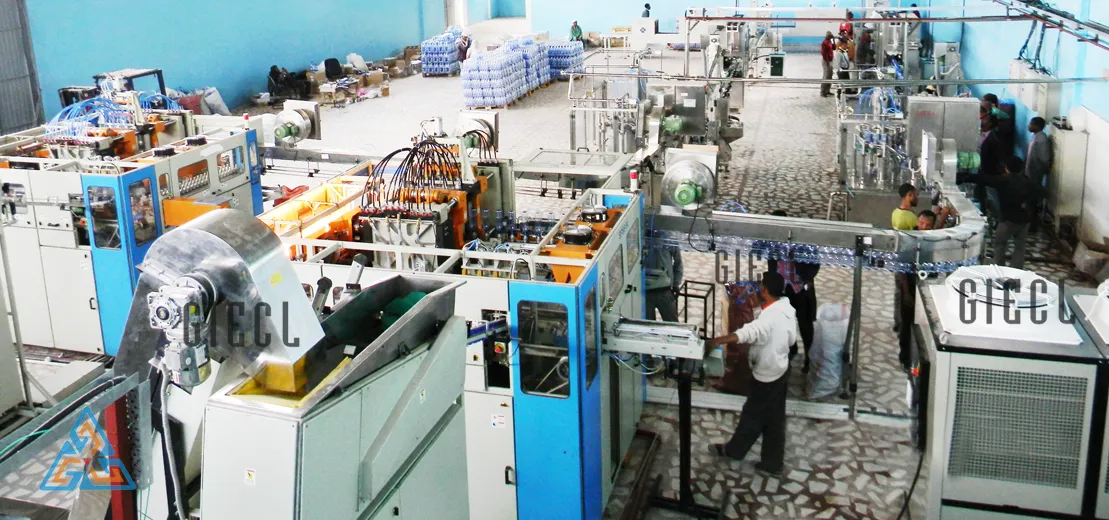

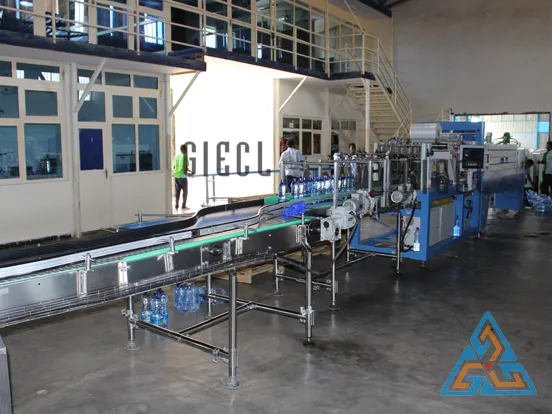

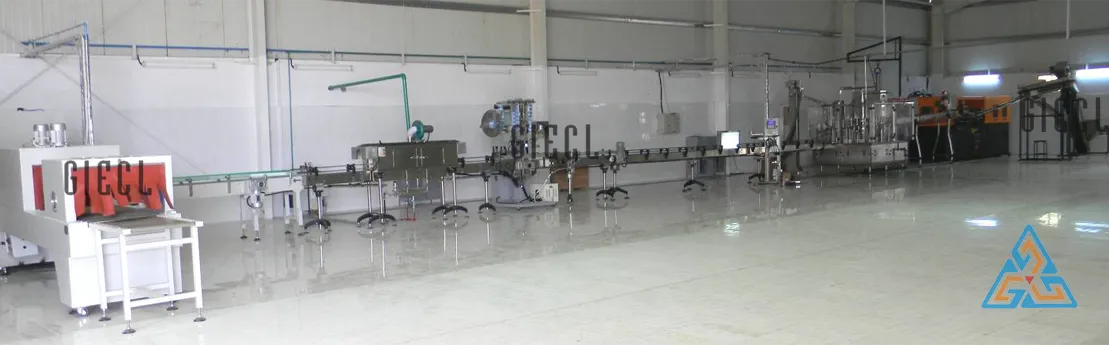

2000 Liters/Hour complete Mineral water processing plant installed at Kampala, Uganda based on R.O.System with U.V. system and Ozonation

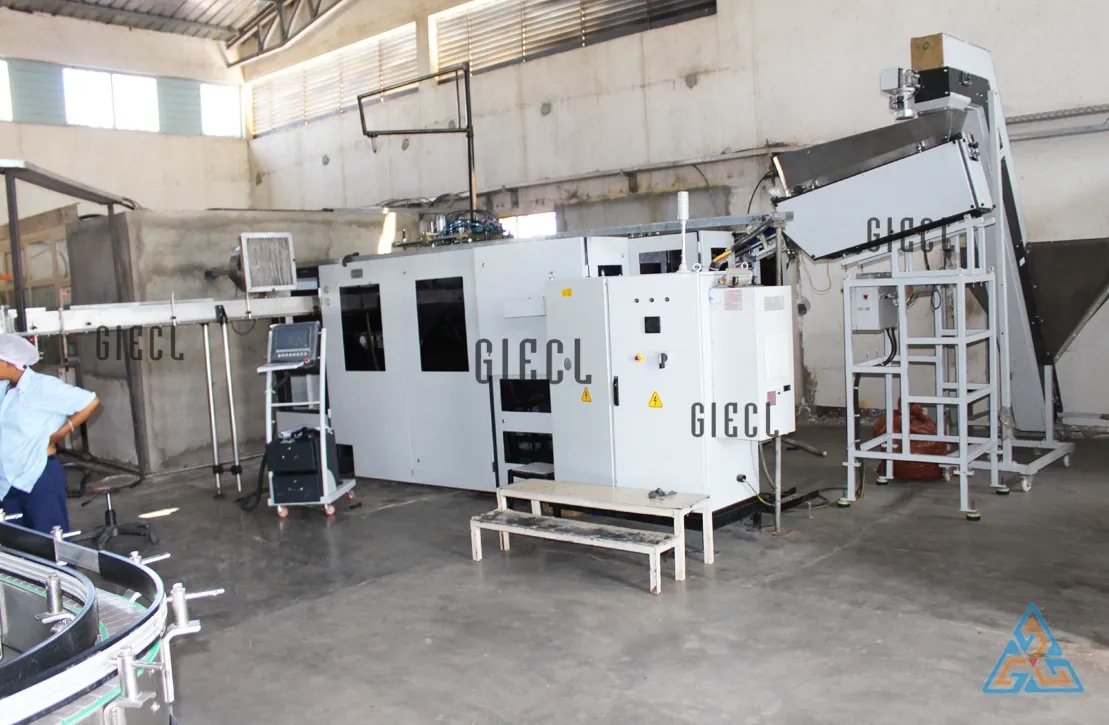

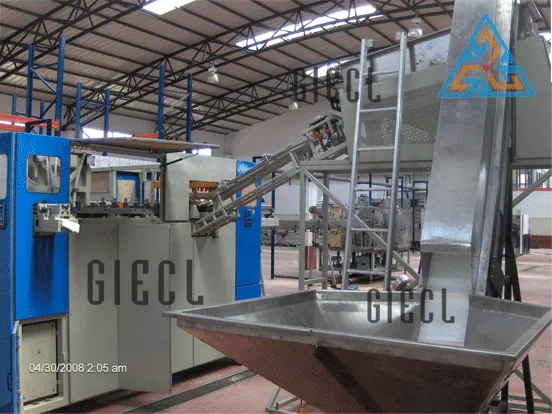

Semiautomatic PET Blow Moulding Machine :- 600 Bottles / Hour



mineral water turnkey project - Empty Bottle Production

Application: -  Empty Bottle Production


500 – 600 Bottles per Hour Semiautomatic PET Blow Moulding Machine


Machine equipped with infra red Heating Owen with PLC Controlled.

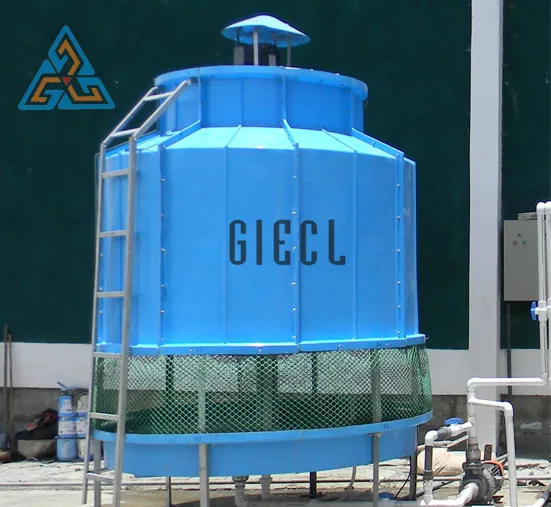

Machine Supplied with High Air Pressure Compressor with Mould, Cooling Tower, Air Dryer and Air Filter.



Option – 1 : - 500 ml to 2000 ml Pet Bottles Rinsing, Filling, Capping and Sealing Machine - Fully Auto and Semi Auto (Station Filler Type)



Machine Speed :- 16 BPM to 25 BPM ( 960 Bottles / Hour to 1500 Bottles / Hour )

Filling                 :- Still Water

Conveyor           :- Infeed Air and Out feed S.S. Slate



Machine Type

Mechanical

Filling Sizes

500 ml to 2 Liters

Neck Size

28 mm / 30 mm

Conveyor

Air and Slat

Fluid

Water

Speed Available

14 BPM to 25 BPM

Material

S.S. - 316 (wetted Part)

mineral water turnkey project

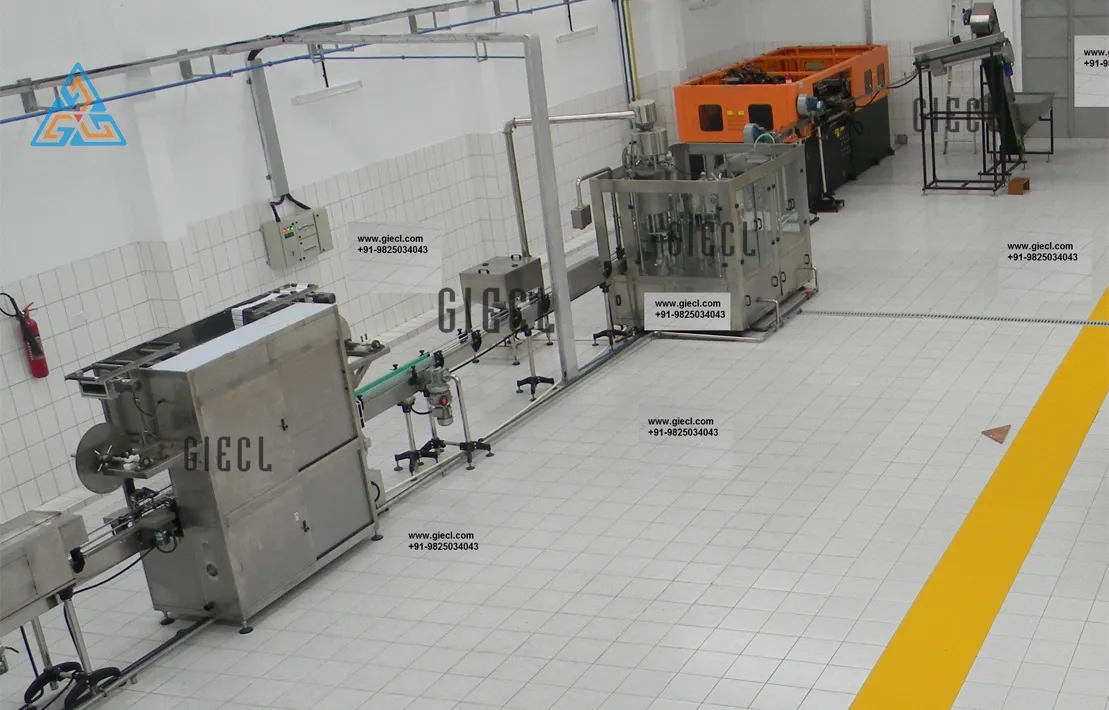

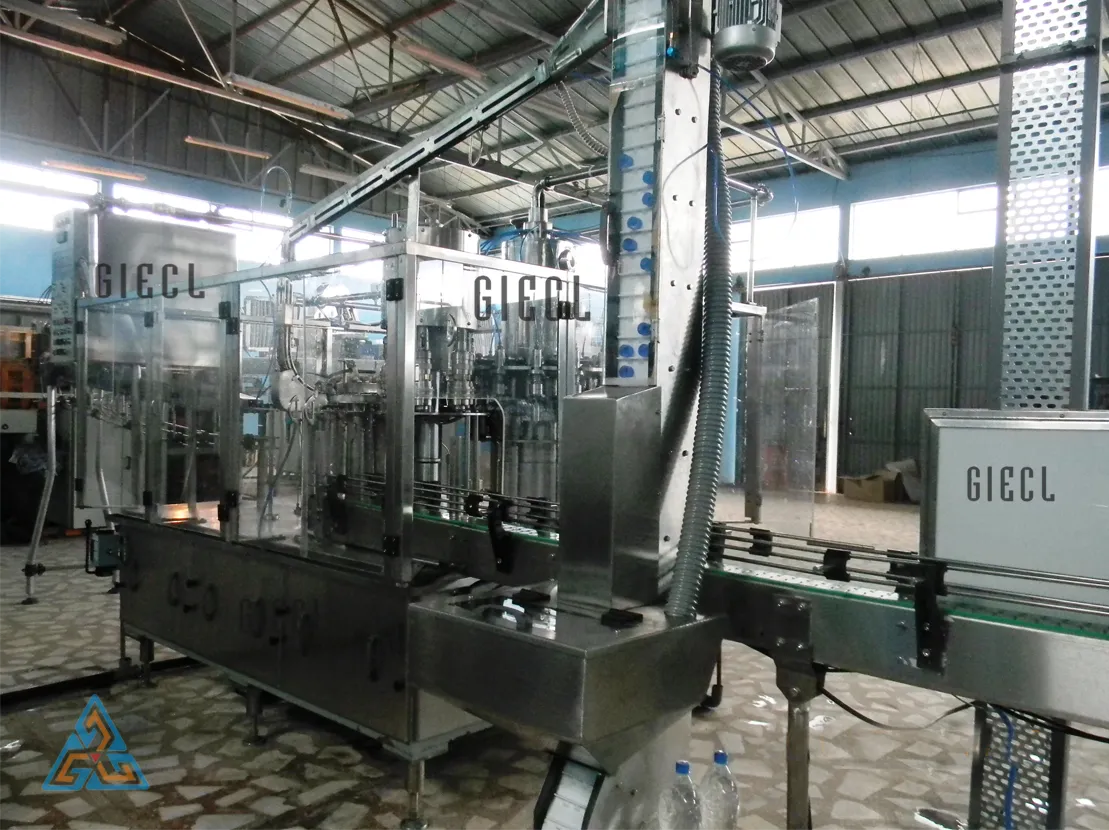

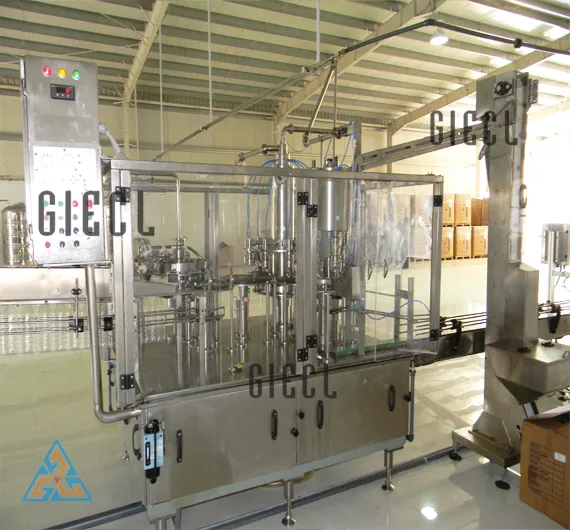

Option – 2       : - Fully Automatic   500 ml to 2000 ml Pet Bottles Rinsing, Filling, Capping and  Sealing Machine



Machine Speed :- 40 BPM to 300 BPM (2400 Bottles / Hour to 18,000 Bottles / Hour )

Filling                 :- Still Water, Aerated and Juice with Hot Fill

Conveyor           :- Infeed Air and Out feed S.S. Slate



mineral water turnkey project

Machine Type

Mono Block

Filling Sizes

500 ml to 2 Liters

Neck Size

28 mm / 30 mm

Conveyor

Air and Slat

Fluid

Water, Juice, Soda

Speed Available

40BPM to 300 BPM

Material

S.S. - 316 (wetted Part)



Pouch / Sachet Packing Machine



Structure: - M.S.
Machine Dimension in mm: L/W/H:-1200 / 900/ 2100 Machine Weight: - 325 Kg. (Approx.)
Covering: - S.S.
Front Side: - S.S Covering
Top Side: - S.S Covering
Suitable Pouch width: - As per Client Requirement
Machine capacity: 150ml to 500ml
Filling System: - S.S (304) & Gravimetric filling
Packing Material: - Polyethylene film
Film Width :- (AS PER YOUR REQUIRMENT)
Sealing Type: - Impulse
Speed: - 2000 pouch/hour
Motor: - Single phase, 1440 r.p.m, ½ H.P
Rotary switches: - L&T Salzer
Digital Pouch counter: Multispan makes


Pouch / Sachet Packing Machine



GIECL Take the Complete Turnkey Projects as per Customer's Requirements. GIECL has Affiliation with related Machineries manufacturers and have executed such Projects Nationally and Internationally.

GIECL Take the Complete Project right from Designing, Engineering, Manufacturing, Erection and Commissioning at site with Trail Production


GIECL Provides all Technical supports for Buildings and Electrification for Projects


GIECL supporting for Licenses and Documentation


GIECL supply all Equipments as required and are responsible for its Installation.


GIECL supply its all Components as per International standard and Multinational Manufacturer norm


GIECL supply all Machineries with standard Spares and Consumables with Supply and post Monitoring of its uses


GIECL Turnkey Project's Key Factor is its Low Production Cost as it is working by optimizing Efficiency


GIECL strength is its Specialization in Training at Site which gives Trouble free Operation


GIECL Furnish the Complete Installation and Commissioning at site in Record Period


GIECL Technical Supports after Installation of Project gives customer strength and our Customer care department constantly monitoring the Operation by its Communication and documentation.


GIECL also Provide 24 hours online phone and Physical Service Back up to its Customer having contract with UPS and DHL services for immediate supply


GIECL also making Flying Visit to its existing customer for observation and maintenance & operation at site


GIECL believes in Strong and Long terms Customer relationship
